HSD-12F Black

12 Inch 300W Home Audio Powered Active Subwoofer Speaker Professional super- bass Thick and stable wooden cabinet Independent bass adjustment Phase adjustment function
Description Package Information Inquiry

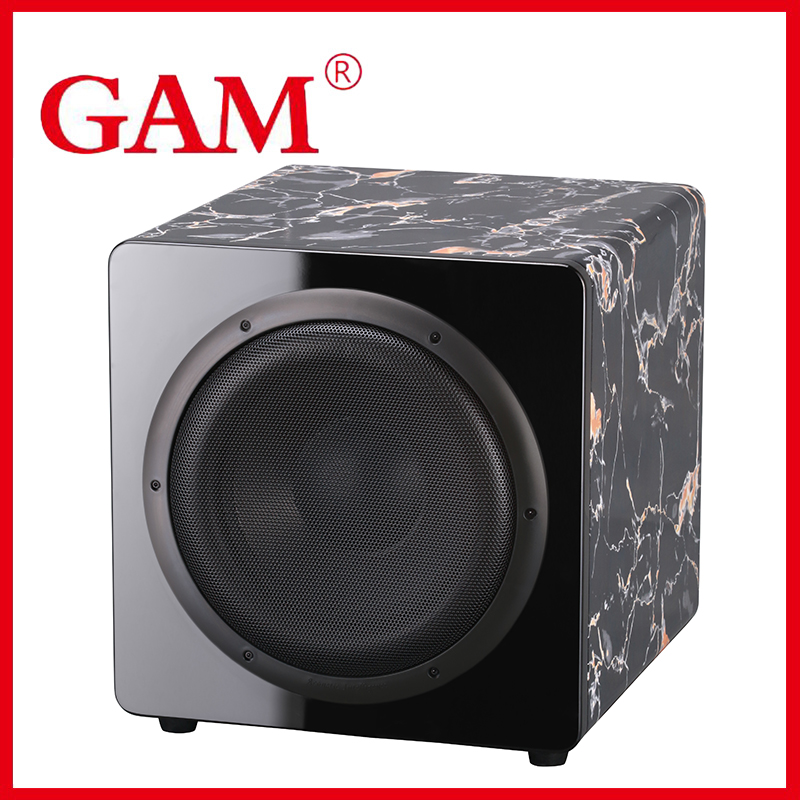

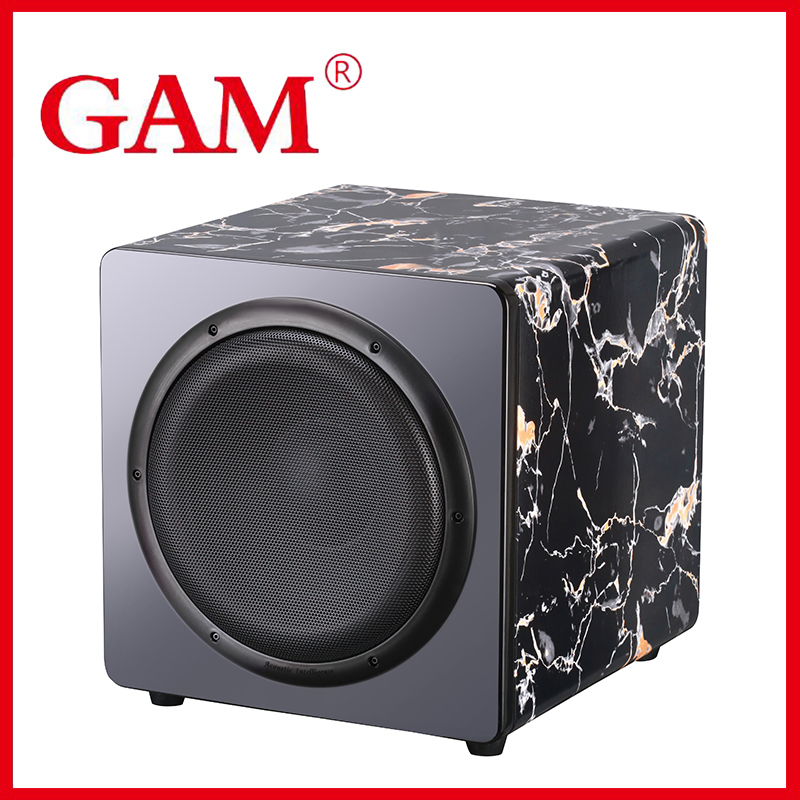

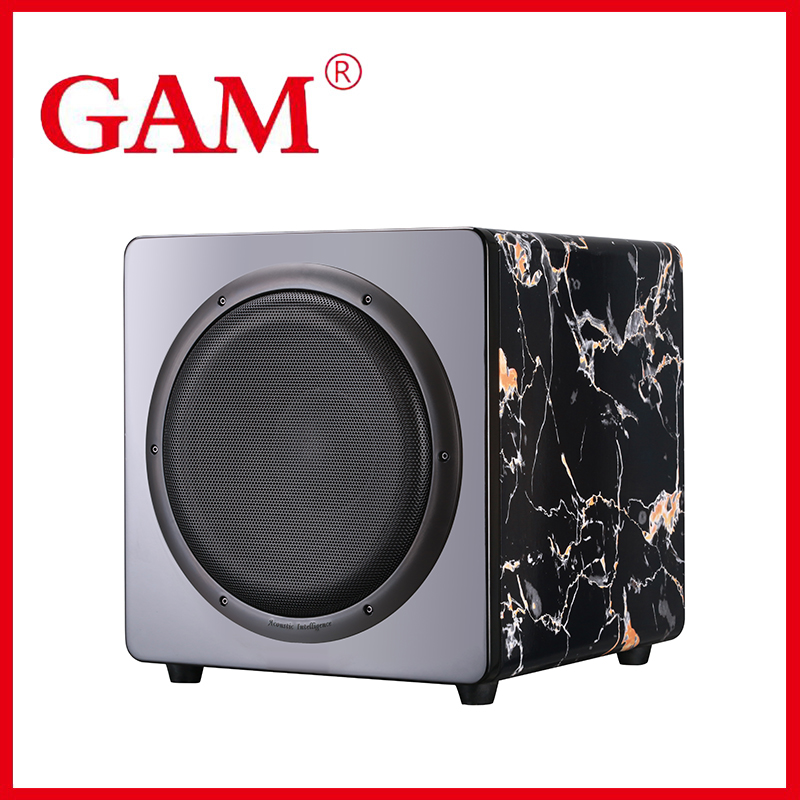

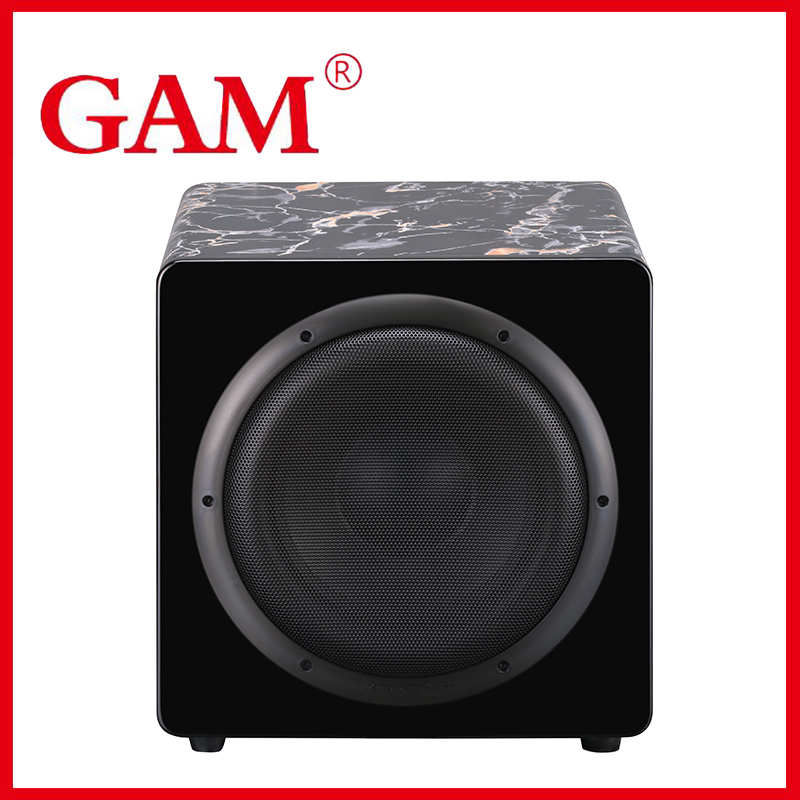

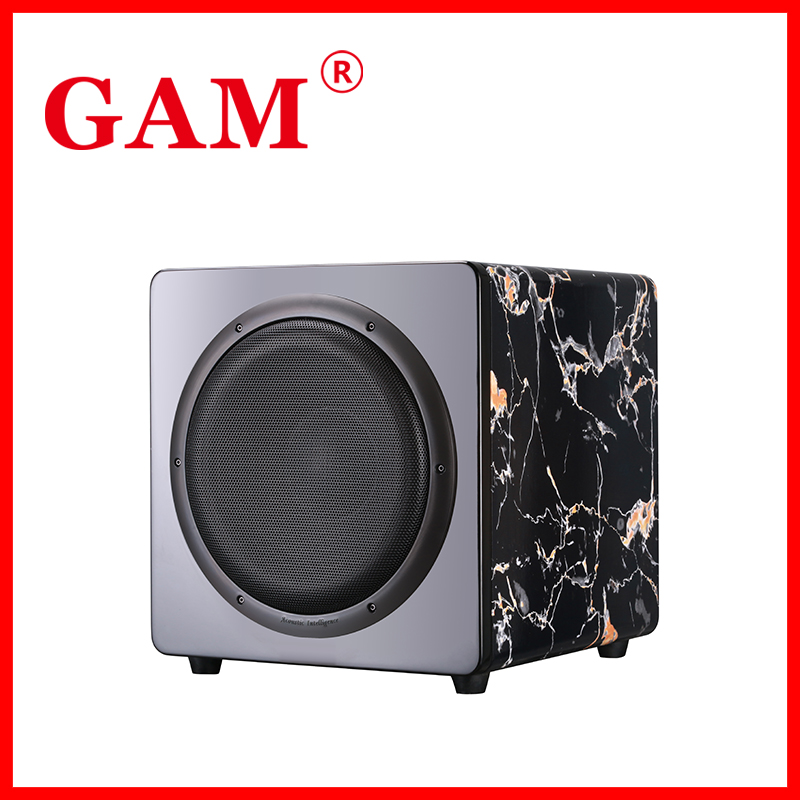

12 Inch 300W Home Audio Powered Active Subwoofer Speaker

This 12-inch active subwoofer with a built-in amplifier delivers 300W RMS power, offering deep bass and clear sound within a frequency range of 35Hz-250Hz, making it ideal for clubs, karaoke, and KTV use. Its plywood shell and portability enhance durability and ease of use, while the 92dB sensitivity ensures high-quality audio performance.

Thundering bass is coming

Not all the subwoofers are super-bass subwoofers



Professional super- bass

Bass is a sound with a thick roaring around 80Hz.Subwoofer is a very deep sound with the frequency extending below 40Hz.Thecombination of the two is super bass,which is divided into active and passive subwoofer. The former has its own driving amplifier, which can work with the power supply. The latter needs to be connected to the power amplifier. The active subwoofer speaker is equipped with volume control.phase and level adjustment, which can adjust the subwoofer and generally achieve good sound effect. There is no crossover network inside the passive subwoofer, and it is driven by the power amplifier. Because it cannot be adjusted, it is difficult to get a harmonious match with other satellite speaker. From the perspective of application, the active subwoofer is the first choice

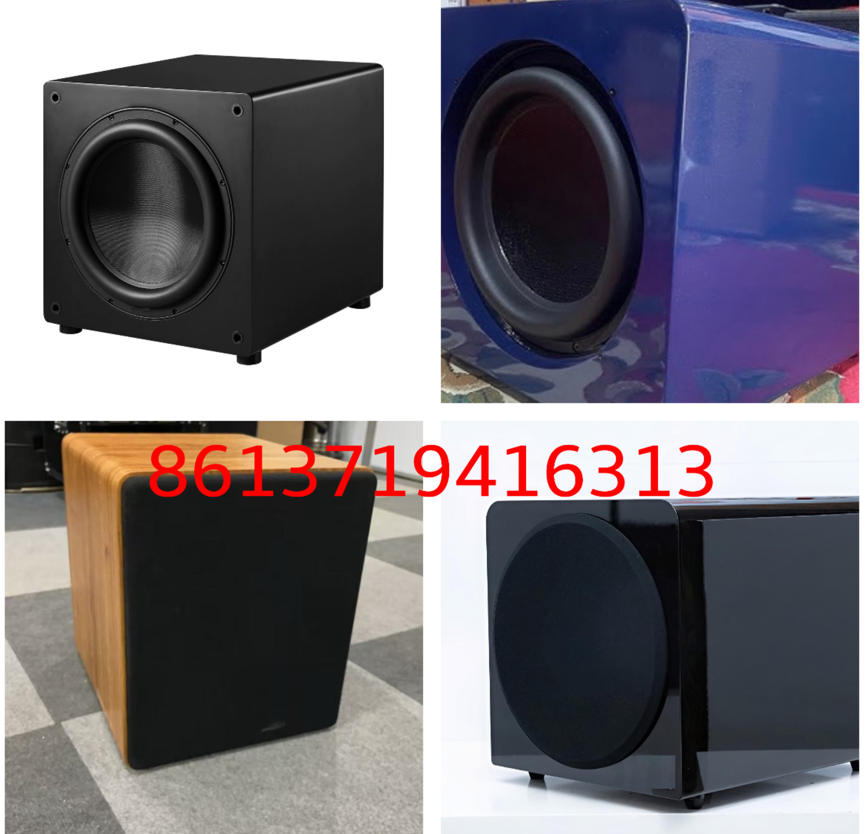

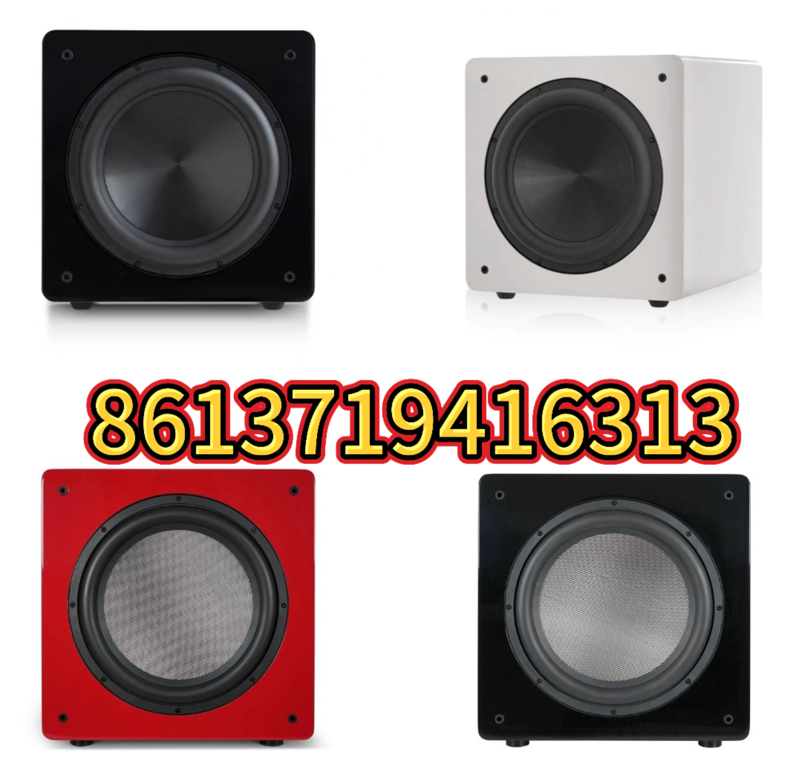

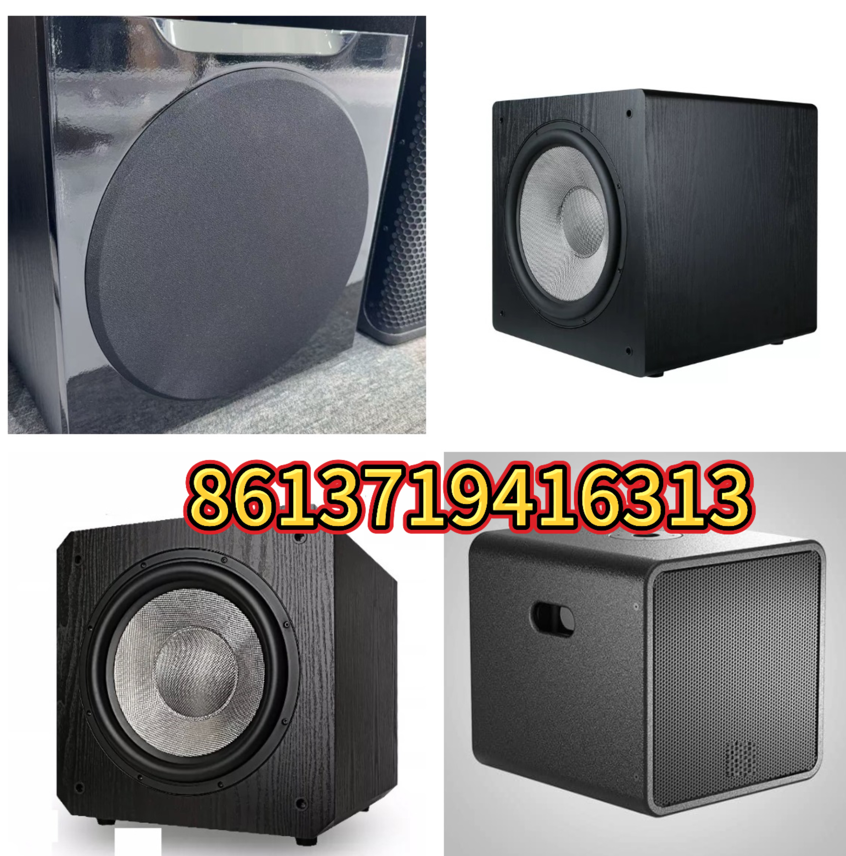

Thick and stable wooden cabinet

Thicken wooden cabinet structure and black woodgrain appearance, allowing for sophisticated looks and it can also reduce the resonance of the cabinet which provide clearer bass.

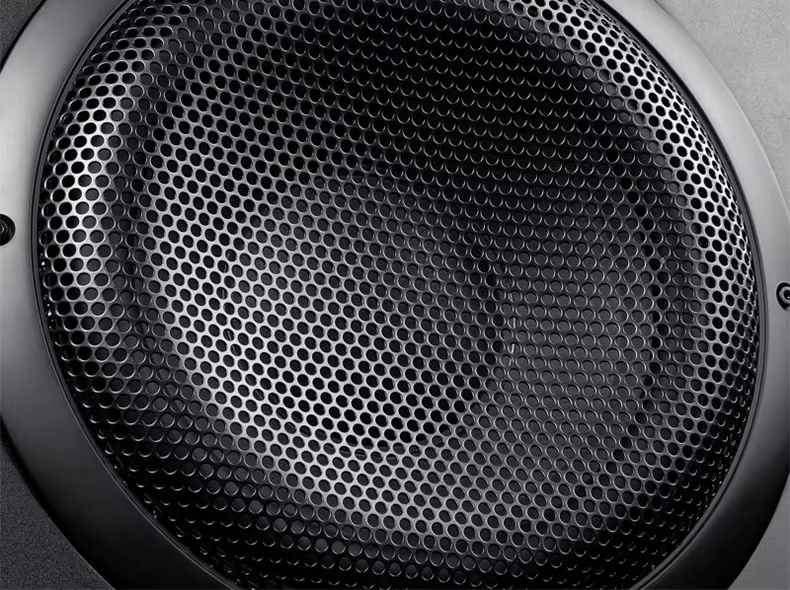

S 02.png

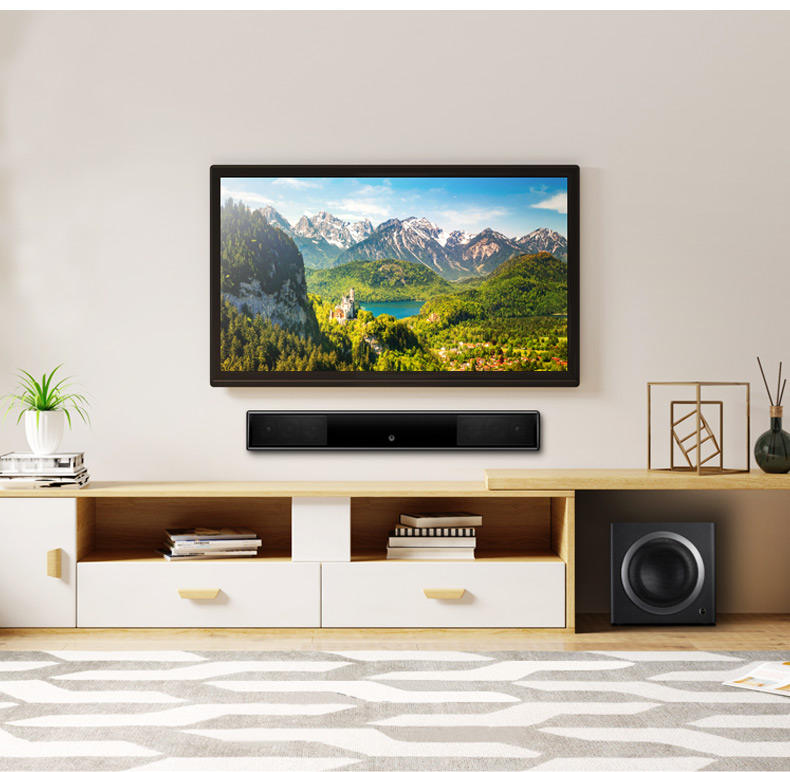

SA 001.png

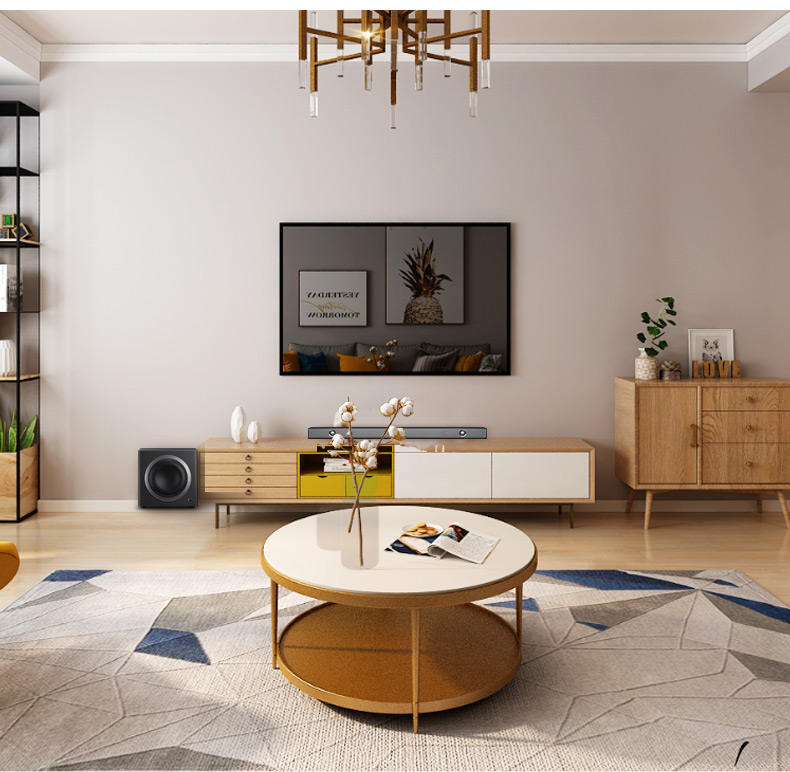

SA 002.png

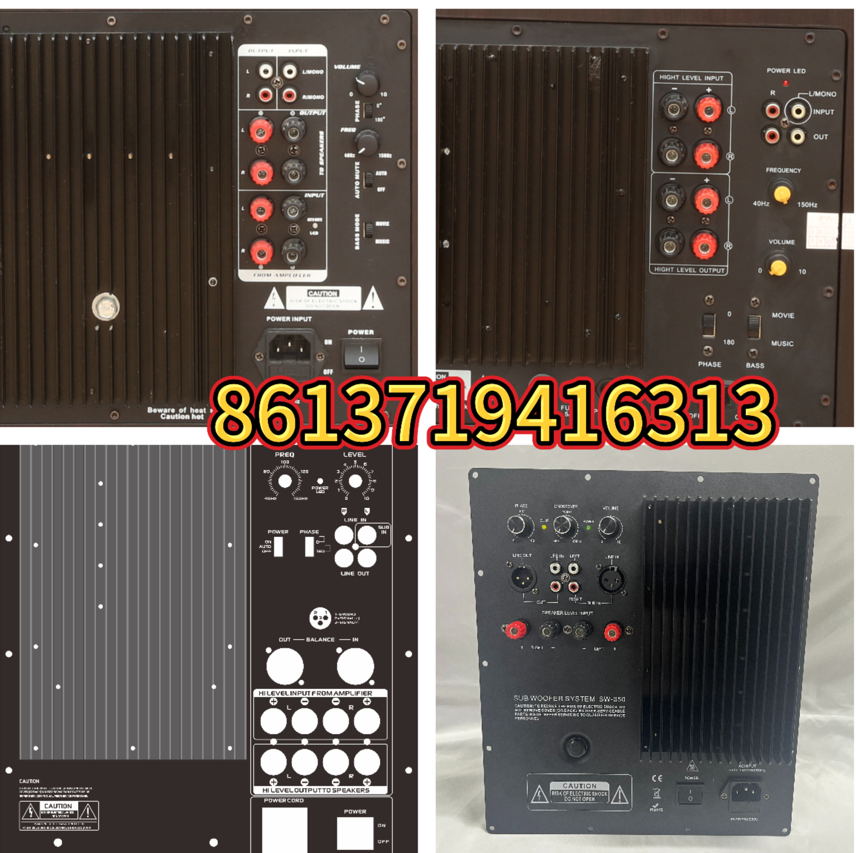

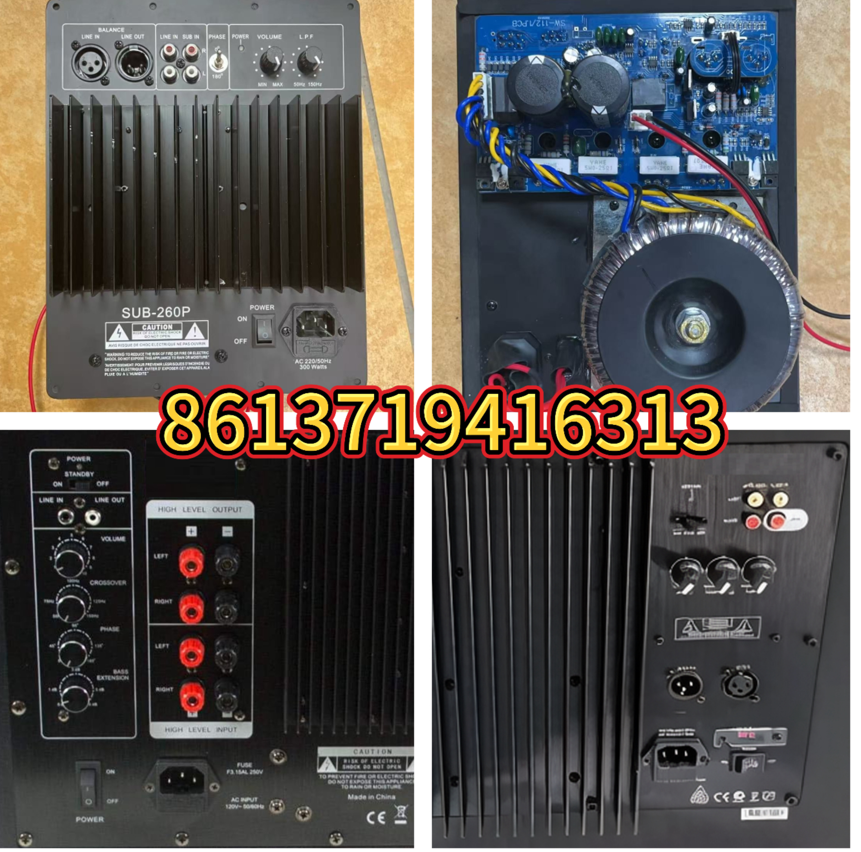

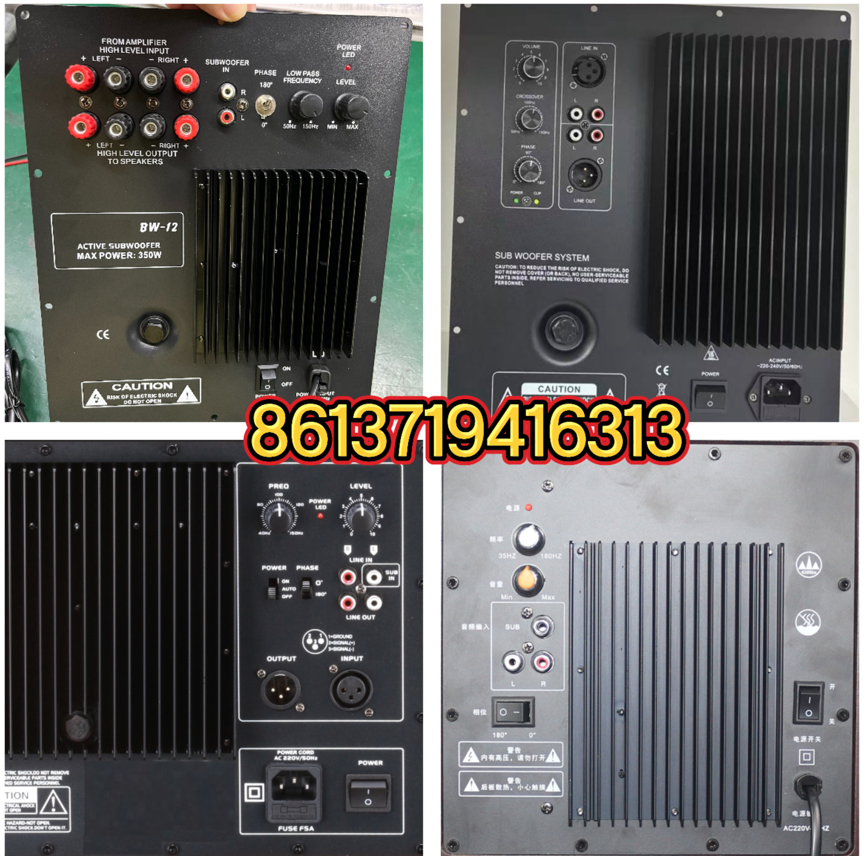

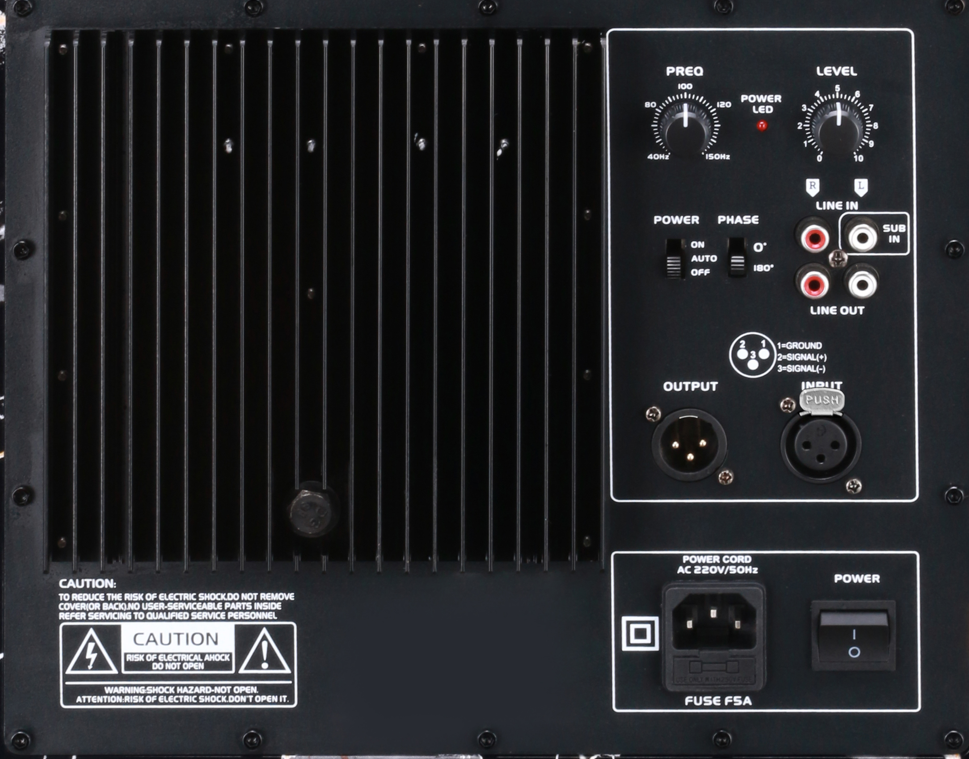

Independent bass adjustment

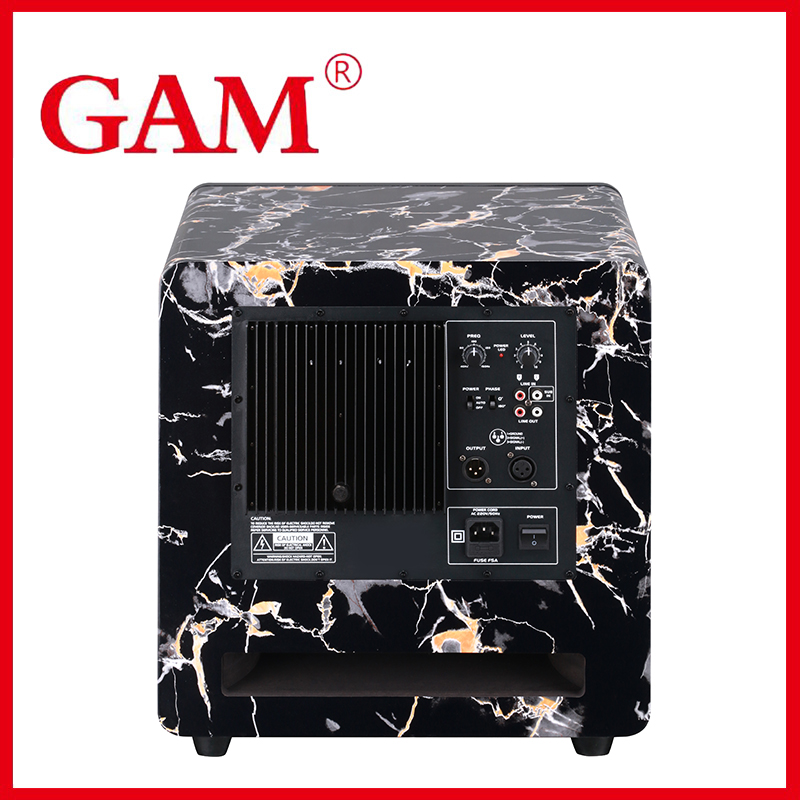

Control board set independent bass adjustment function.

You can adjust the bass intensity as you like.

Autonomous crossover design

40-150Hz crossover knob design, the lower the crossover point is,the lower the output bass frequency band of the subwoofer allowing bass audiophile to match as they like.

Phase adjustment function

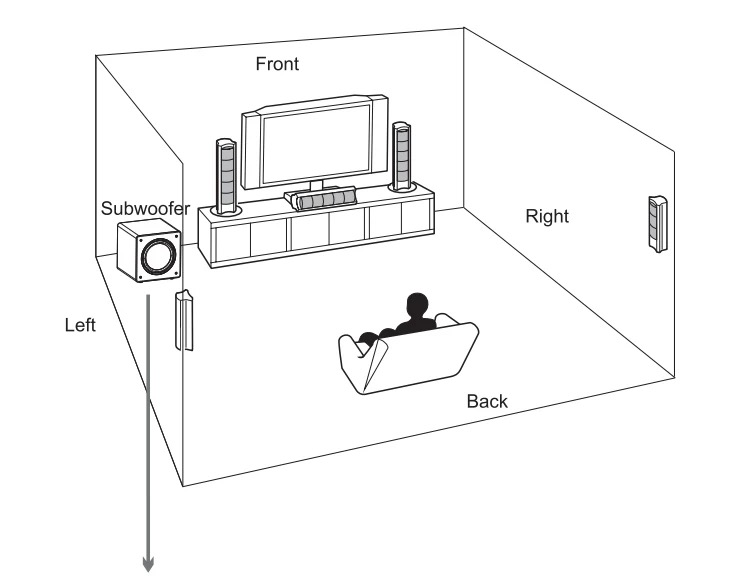

0-180 degree phase adjustment, regardless of the forward and reverse signal input, or the placement of the subwoofer in different positions, it can be adjusted to a better output effect.

Model

HSD-12F

HSD-15F

RMS   Power Handling

300W

400W

Peak   Power Handling

650W

750W

Dimension(WHD)

400x400x417mm

480x500x500mm

Circuit   Type

Class   AB

Class   AB

Impedance

8 ohm

8 ohm

Drivers

1x12” 156 magnet 50 mm VC

1x15”   170 magnet 65 mm VC

Frequency Response

40 Hz - 150Hz

40 Hz - 150Hz

Sensitivity(1W @ 1M)

95dB

98dB

Maximum SPL

107dB Peak @ 1M

109dB Peak @ 1M

Connector

Binding   post x8+6.35RCA

Cabinet material

15mm MDF+ PVC+front panel   painting+ cloth grille

15mm MDF+ PVC+f cloth grille

Package

540x520x 515mm

630x620x598mm

N.W

23kg

29.5kg

G.W

24.9kg

31kg
