HSD-12ET

RMS:300W Woofer drive:12inch x 1 Cabniet: MDF
Description Package Information Inquiry

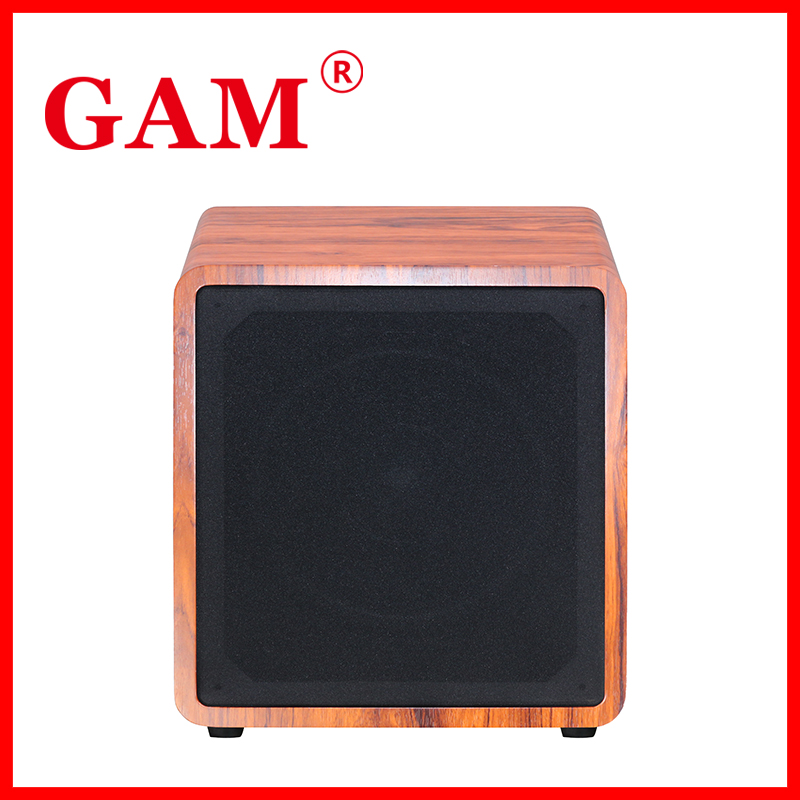

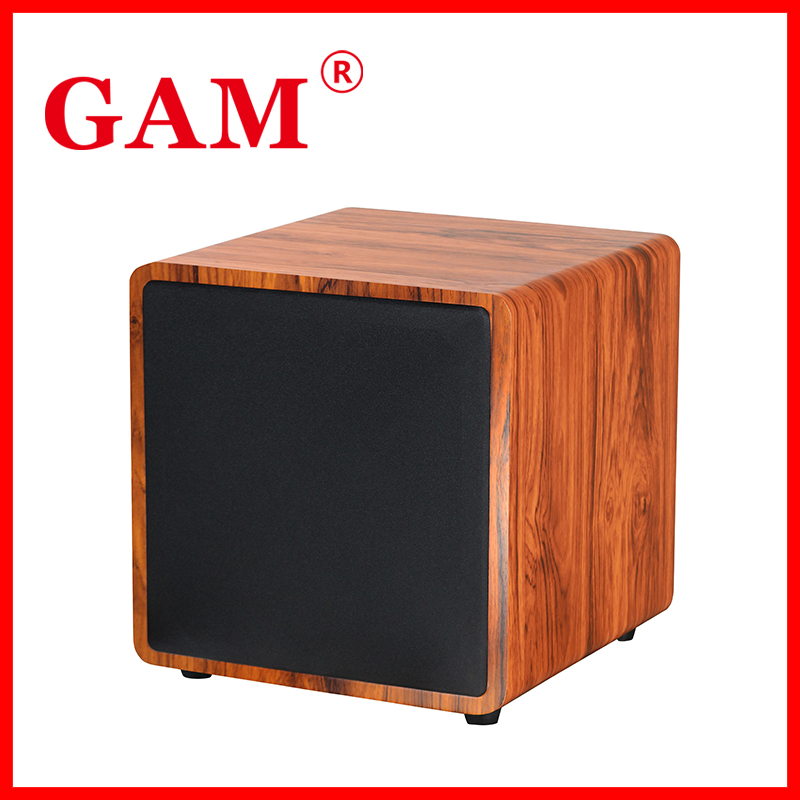

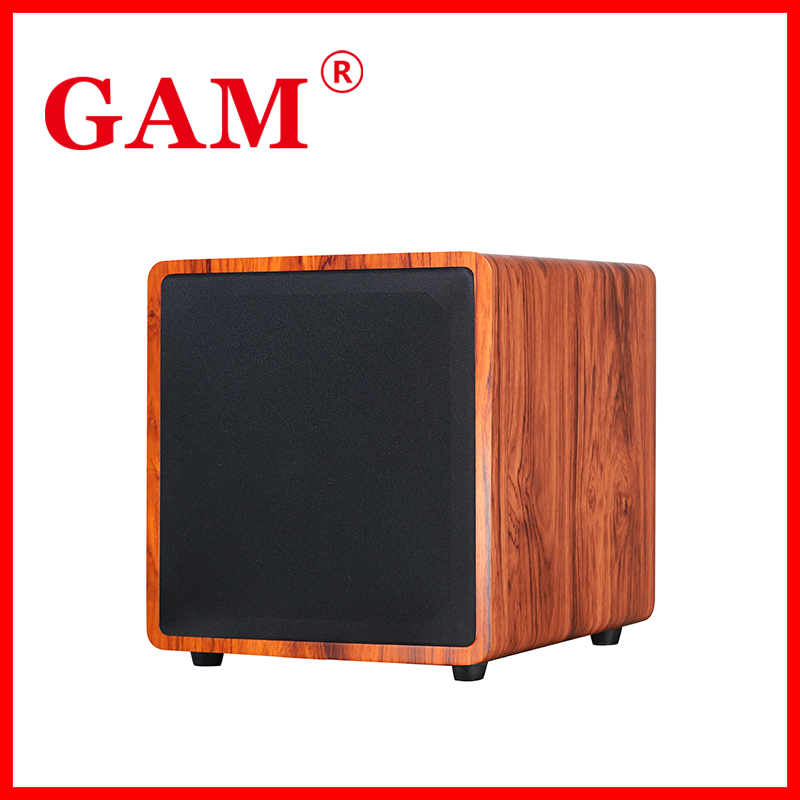

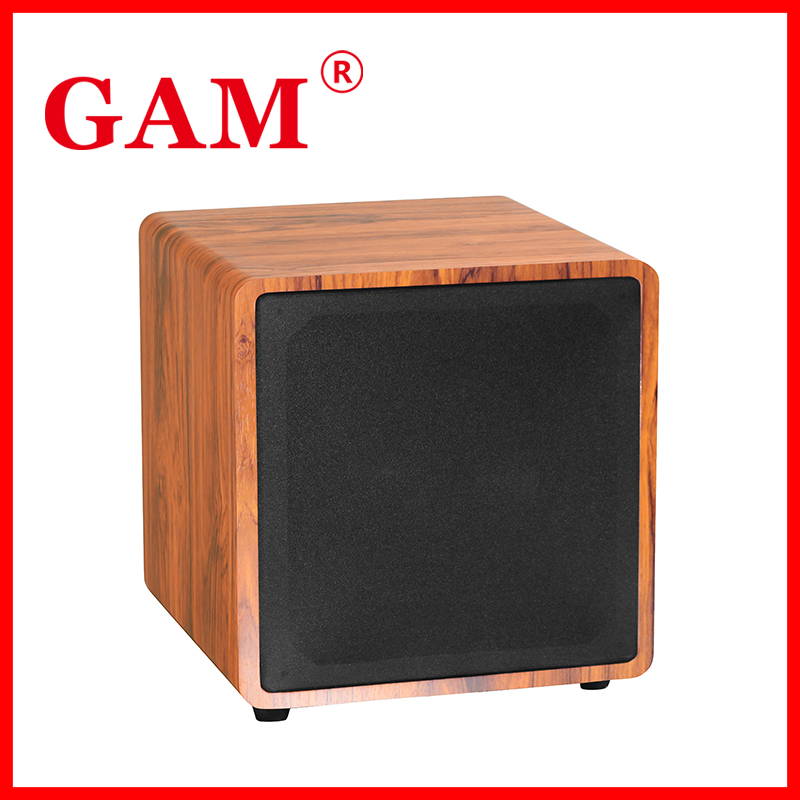

The HSD-12ET Home Active Subwoofer is customized a 12-inch bass driver and  specially designed analog amplifier based on customer request.

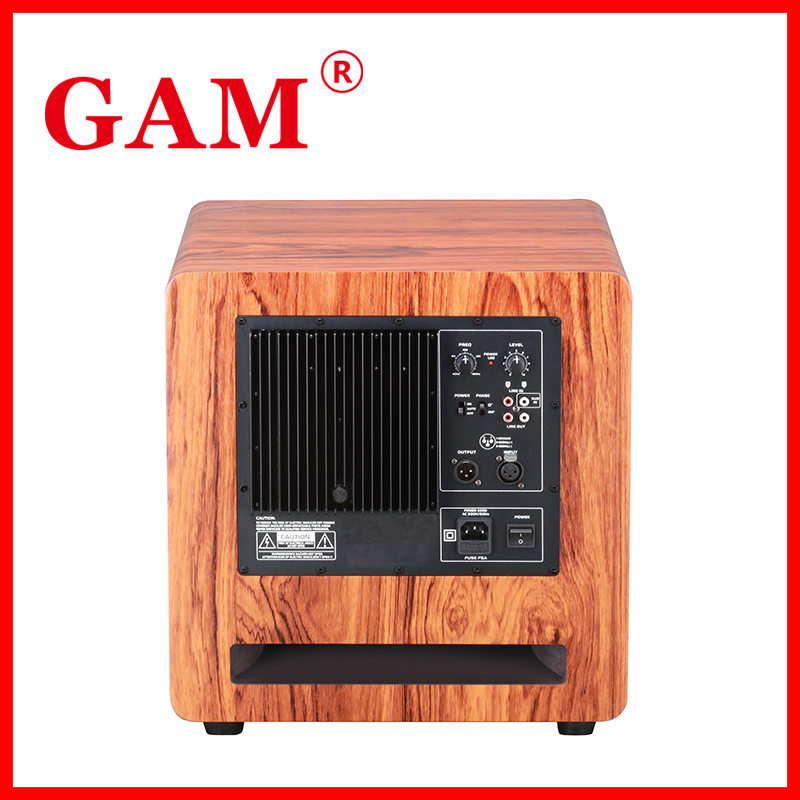

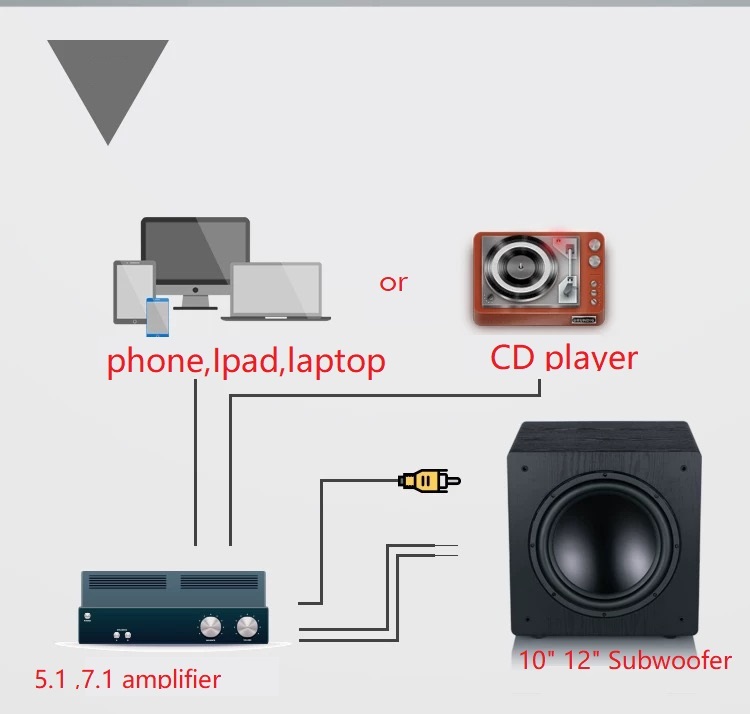

This 12inch powered subwoofer speaker delivers 300 watts RMS of Class AB power with a 12-inch woofer driver, offering deep bass and flexible connectivity through RCA, LFE, HIGH LEVEL inputs and HIGHT LEVEL output. It features a durable MDF wooden cabinet, variable volume and crossover control, built-in phase adjustment (0 and 180 degrees), and an auto power switch for convenience.

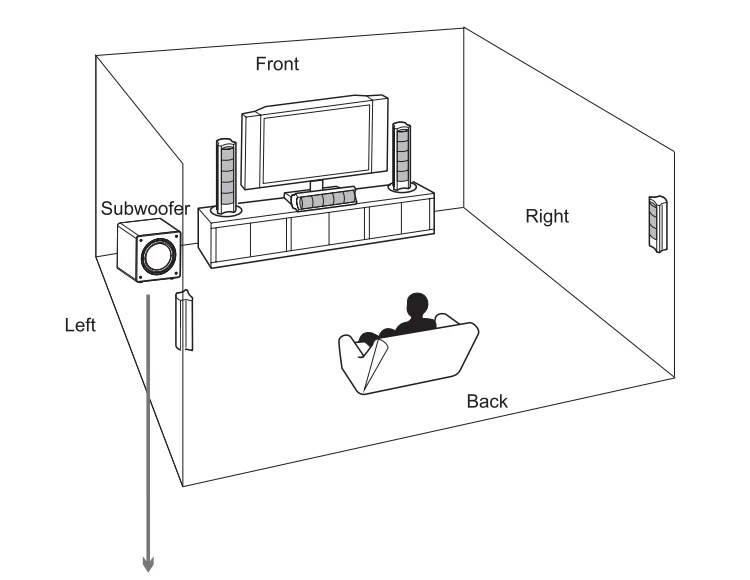

CUSTOMIZED BASS:The Home Audio subwoofer gain, low pass crossover, and phase controls ensure the low-frequency tones blend with other speakers and establish the ideal level of bass for your room.

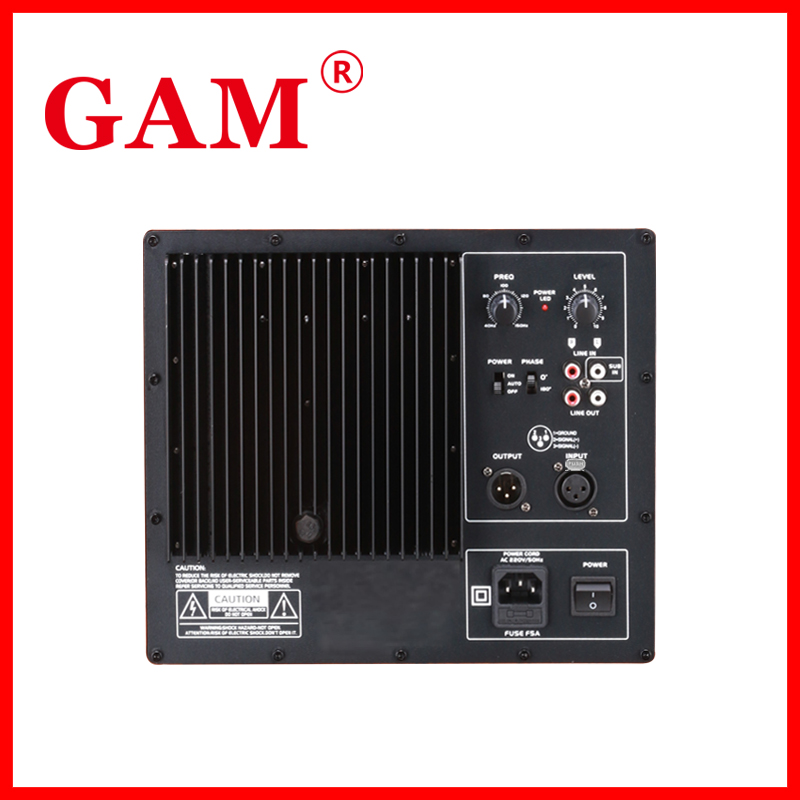

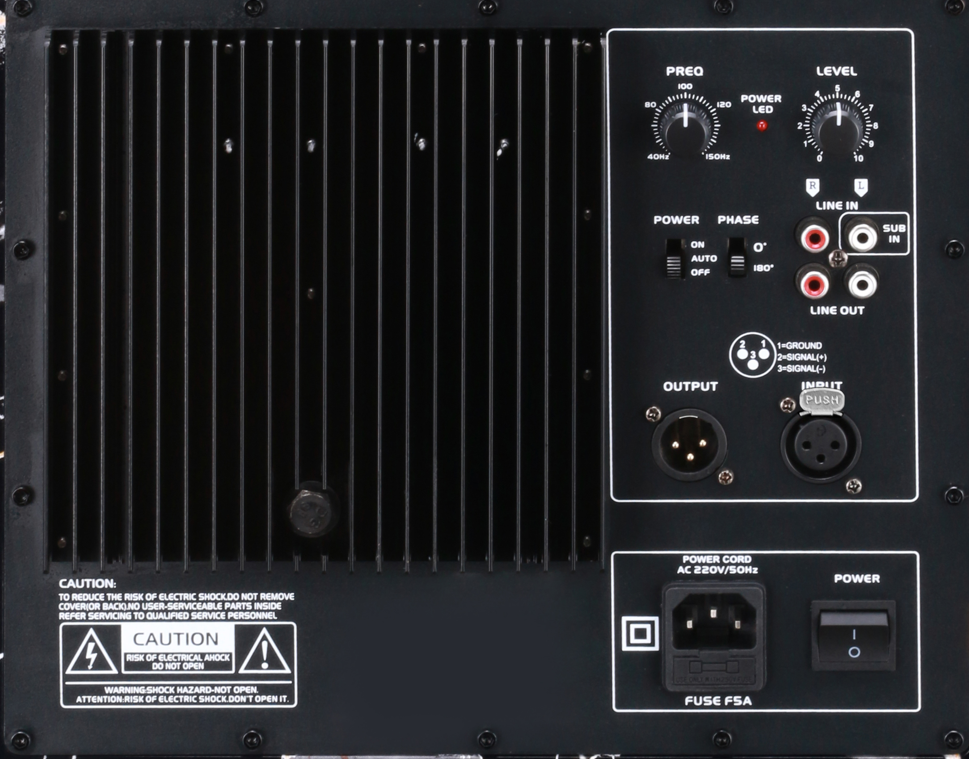

With LINE IN/OUT;Phase 0-180 adjustment. LOW PASS FREQUENCY:40-150Hz to control. Level volume

With XLR Combo,3 PIN x2 connect.

S 02.png

SA 001.png

SA 003.jpg

SPECIFICATION

Model

HSD-12ET

HSD-15ET

RMS   Power Handling

300W

400W

Peak   Power Handling

650W

750W

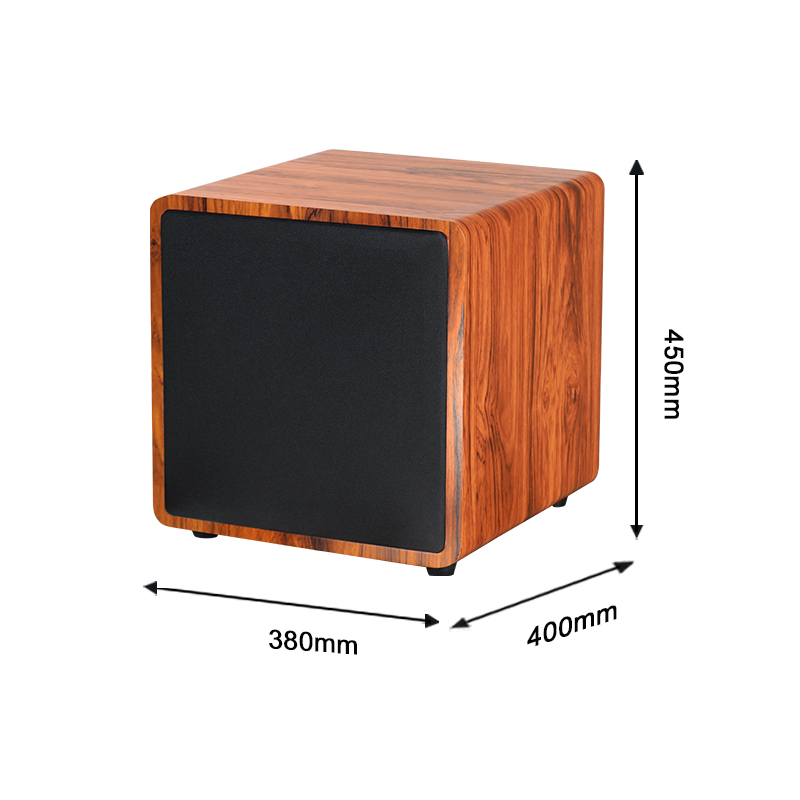

Dimension(WHD)

400x400x417mm

480x500x500mm

Circuit   Type

Class   AB

Class   AB

Impedance

8 ohm

8 ohm

Drivers

1x12” 156 magnet 50 mm VC

1x15”   170 magnet 65 mm VC

Frequency Response

40 Hz - 150Hz

40 Hz - 150Hz

Sensitivity(1W @ 1M)

95dB

98dB

Maximum SPL

107dB Peak @ 1M

109dB Peak @ 1M

Connector

Combo XLR,3pin+Femal XLR,3pin

Combo XLR,3pin+Femal XLR,3pin

Cabinet material

15mm MDF+ PVC+front panel   painting+ cloth grille

15mm MDF+ PVC+f cloth grille

Package

540x520x 515mm

630x620x598mm

N.W

23kg

29.5kg

G.W

24.9kg

31kg
