HSD-GD15F

15inch Woofer 400W RMS 40-150Hz crossover control 0-180 phase adjustment
Description Package Information Inquiry

15 Inch 400w Home Audio Powered Active Subwoofer Speaker

This 15 inch active subwoofer is customized according to the customer's requirements, featuring an upper and lower rounded corner design and an iron mesh lined with screws.


This 15-inch active subwoofer with a built-in amplifier delivers 400W RMS power, offering deep bass and clear sound within a frequency range of 40Hz-150Hz, making it ideal for clubs, karaoke, and KTV use. Its plywood shell and portability enhance durability and ease of use, while the 91dB sensitivity ensures high-quality audio performance.

Professional super- bass

Thundering bass is coming

Not all the subwoofers are super-bass subwoofers

Bass is a sound with a thick roaring around 80Hz.Subwoofer is a very deep sound with the frequency extending below 40Hz.Thecombination of the two is super bass,which is divided into active and passive subwoofer. The former has its own driving amplifier, which can work with the power supply. The latter needs to be connected to the power amplifier. The active subwoofer speaker is equipped with volume control.phase and level adjustment, which can adjust the subwoofer and generally achieve good sound effect. There is no crossover network inside the passive subwoofer, and it is driven by the power amplifier. Because it cannot be adjusted, it is difficult to get a harmonious match with other satellite speaker. From the perspective of application, the active subwoofer is the first choice

Thick and stable wooden cabinet

Thicken wooden cabinet structure and black woodgrain appearance, allowing for sophisticated looks and it can also reduce the resonance of the cabinet which provide clearer bass.

Rated power :400W (RMS)

Using imported lC: High power can maintain stable output and control delivering thundering bass.

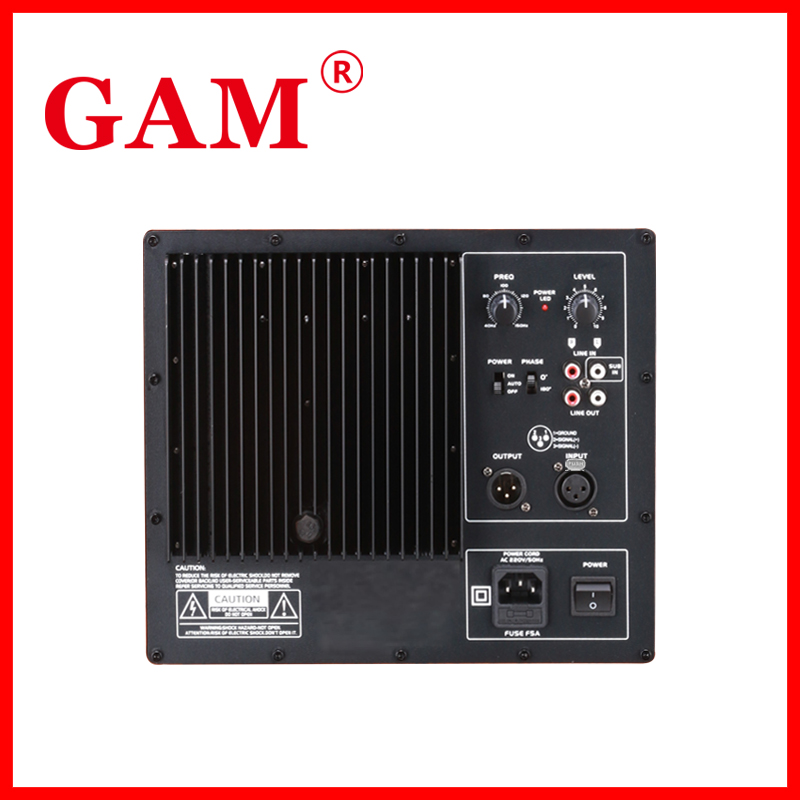

Independent bass adjustment

Control board set independent bass adjustment function.

You can adjust the bass intensity as you like.

Autonomous crossover design

40-150Hz crossover knob design, the lower the crossover point is,the lower the output bass frequency band of the subwoofer allowing bass audiophile to match as they like.

Phase adjustment function

0-180 degree phase adjustment, regardless of the forward and reverse signal input, or the placement of the subwoofer in different positions, it can be adjusted to a better output effect.

S 02.png

SA 002.png

SPECIFICATION

Model

HSD-GD15F

RMS   Power Handling

400W

Peak   Power Handling

750W

Dimension(WHD)

430x530x480mm

Circuit   Type

Class   AB

Impedance

8 ohm

Drivers

1x15”   170 magnet 65 mm VC

Frequency Response

40 Hz - 150Hz

Sensitivity(1W @ 1M)

98dB

Maximum SPL

109dB Peak @ 1M

Connector

Combo XLR,3pin+Femal   XLR,3pin

Cabinet material

15mm MDF+ metal grille

Package

605x538x658mm

N.W

31kg

G.W

35kg


GD-15 H01.jpg


The packaging adopts 5mm thick pearl cotton box paper corner packaging. The outer packaging is made of kraft paper
