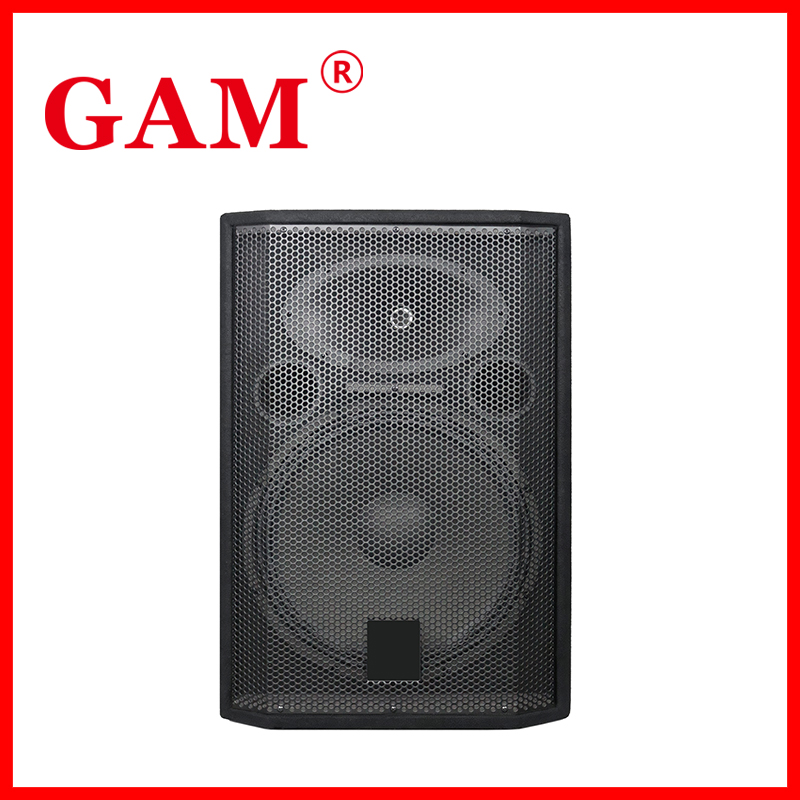

HSD-EVPX15

15inch blanket box 400W AES Power Durable Wood Construction
Description Package Information Inquiry

1.professional Speaker Sound System: The product boasts a 15-inch range full PA system, providing powerful audio output perfect for various stage performances, concerts, churches, and other settings.

2.Durable Wood Construction: The speaker features a high-quality, wooden body and case, which not only adds an elegant touch but also ensures durability and resistance to the environment.

3.400W Output Power: The HSD-EVPX15 offers a solid 300W output power, making it suitable for indoor and outdoor events where a robust and clear audio experience is desired.

4.Electric Wire Connection: The speaker can be easily connected to other audio equipment via electric wire connection, providing flexibility and allowing for seamless integration into existing sound systems.

5.Comprehensive Coverage: With its full-range coverage, this professional audio system ensures that every listener can enjoy a rich, balanced sound experience, enhancing the overall performance atmosphere.

SPECIFICATION

Model

HSD-EVPX15

HSD-EVPX215




Type

2-Way   Passive Speaker/ Full-Range Loudspeaker System

RMS   Power Handling

400W

800W

Peak   Power Handling

1600W

2200W

Dimension(WHD)

450 x675x420mm

530 x1080x470mm

Impedance

8 ohm

4 ohm

Drivers-Woofer(LF)

1x15” 156 magnet

2x15” 156 magnet

Tweeter(HF)

1x1.35”

1x1.35”

Frequency Response

55 Hz – 20kHz

50 Hz – 18KHz

Sensitivity(1W @ 1M)

99dB

103dB

Maximum SPL

123dB Peak @ 1M

133dB Peak @ 1M

Nominal   Dispersion

70ºH x 60ºV

70ºH x 55ºV

Connector

2 x Speakon   NL4 ( +1/-1)

Cabinet material

15mm high-density fiberboard

Package

455x710x480 mm

525x1085x490 mm

N.W

20.8kg

30kg

G.W

22.7kg

33.5kg
