HSD-12TS

High-performance 2-way passive system Plastic cabinet RMS Power 300W 12inch x 1 design 140 magnet 50 mm VC
Description Package Information Inquiry

This 8-15 inch psssive professional speaker delivers powerful sound with a 150W/500W output, Its portable design features a plastic cabinet.

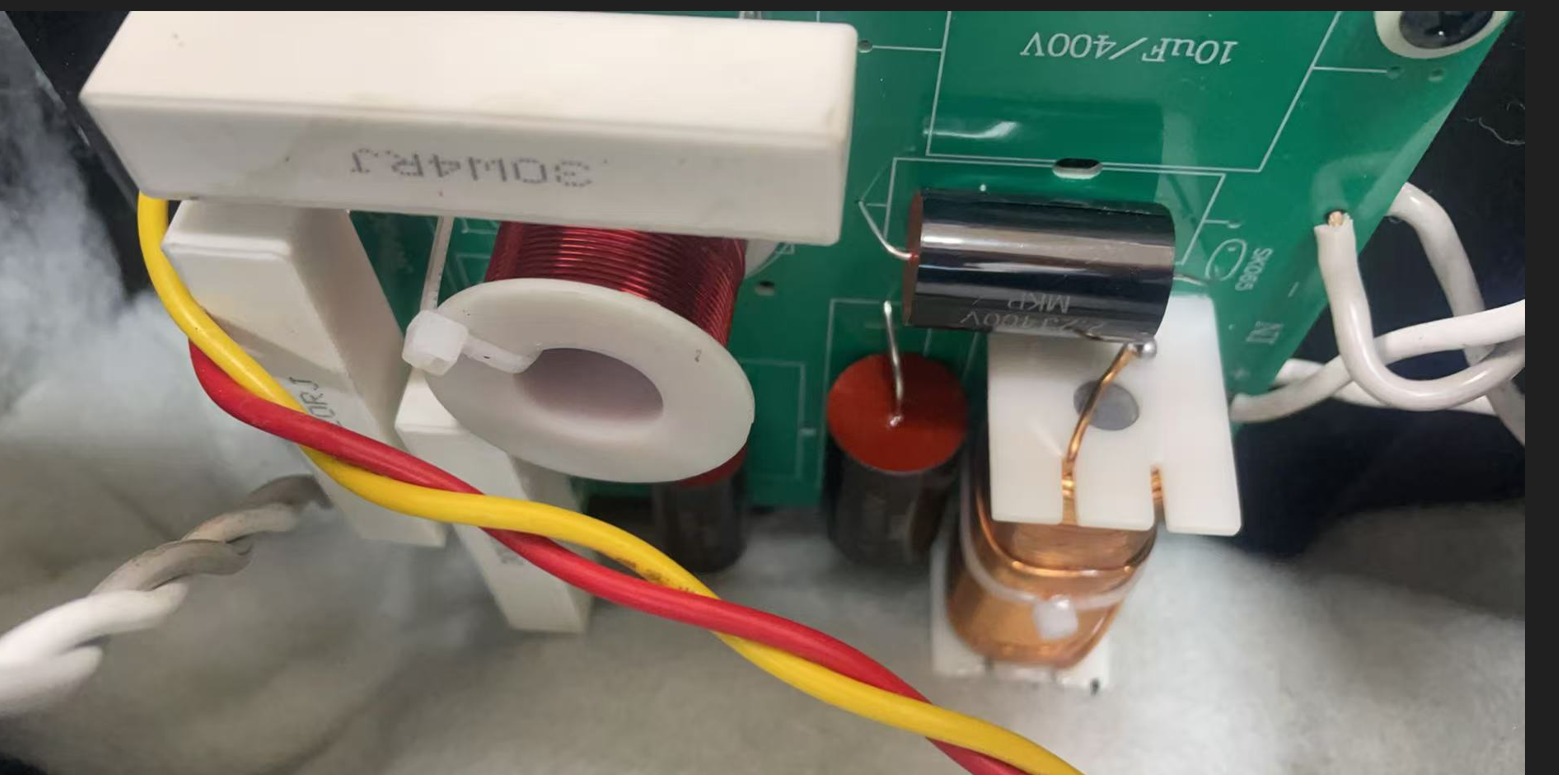

HSD-S series is a versatile 2-way passive speaker system, the box structure is compact, selected British technology transient and impulse response, and select a higher tuning frequency and accurate calculation of the volume, access to very low group delay, Accurate and fast repetition of each transient detail Excellent divider network, high-quality hollow inductors and non-inductive resistors, to achieve the minimum nonlinear distortion, high sound pressure in the state to maintain the consistency and reliability of sound, treble horn 90 ° in the box can be rotated to meet the horizontal or vertical installation of amplification requirements of the application.

■ Double angle trapezoid, compact structure

■ High-performance 2-way passive system

■ ABS panel body

■ high-tech advanced composite membrane, treble slim soft

■ Very low power compression

■ Rotatable 90 ° × 60 ° horn, flexible sound field coverage

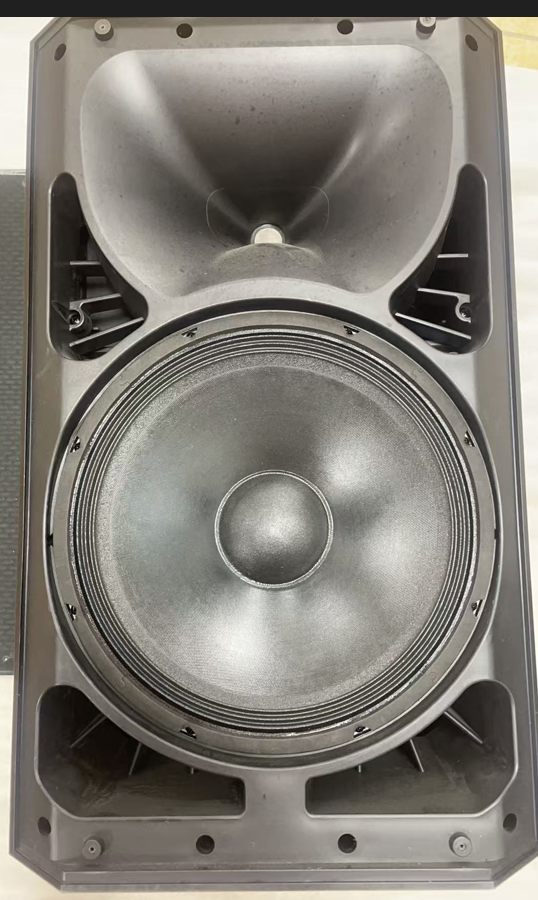

12 01.png12 02.png

12 03.png

12 04.png

Model

HSD-12TS

HSD-15TS

Type

2-Way   Passive Speaker/Floor Standing Speaker

RMS   Power Handling

300W

450W

Peak   Power Handling

800W

1200W

Dimension(WHD)

363x629x344mm

413 x728x402mm

Impedance

8 ohm

8 ohm

Drivers-Woofer(LF)

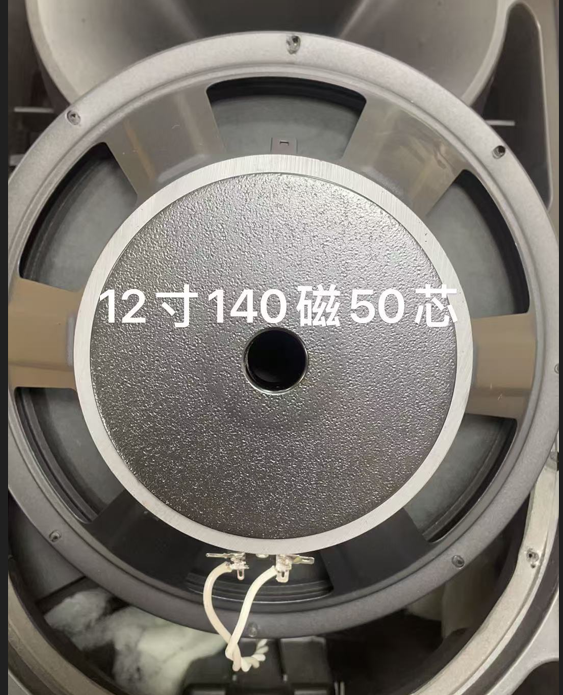

1x12” 140 magnet 50 mm VC

1x15”   156 magnet 65 mm VC

Tweeter(HF)

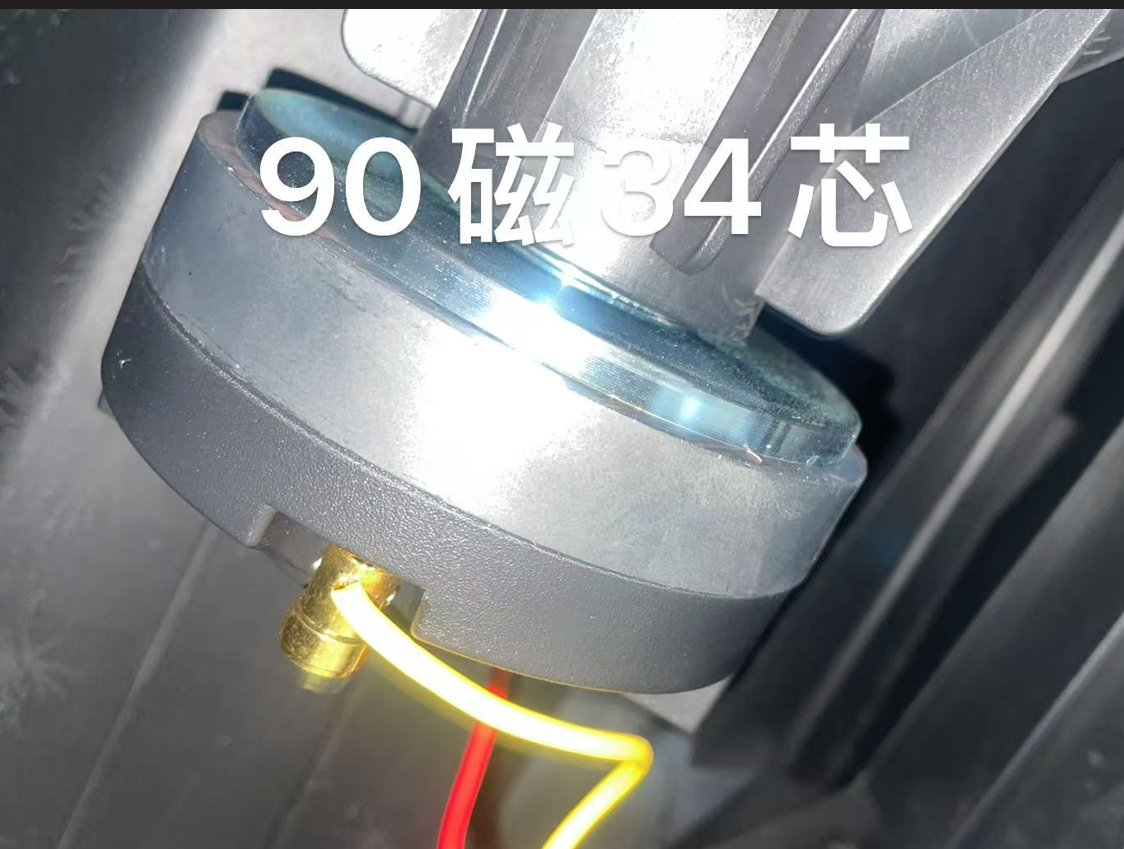

1x1” 90 magnet 34mm VC

1x1.75” 120 magnet 44mm VC

Frequency Response

62 Hz – 18kHz

55 Hz – 18KHz

Sensitivity(1W @ 1M)

97dB

95dB

Maximum SPL

120dB Peak @ 1M

121dB Peak @ 1M

Nominal   Dispersion

90ºH x 60ºV

Connector

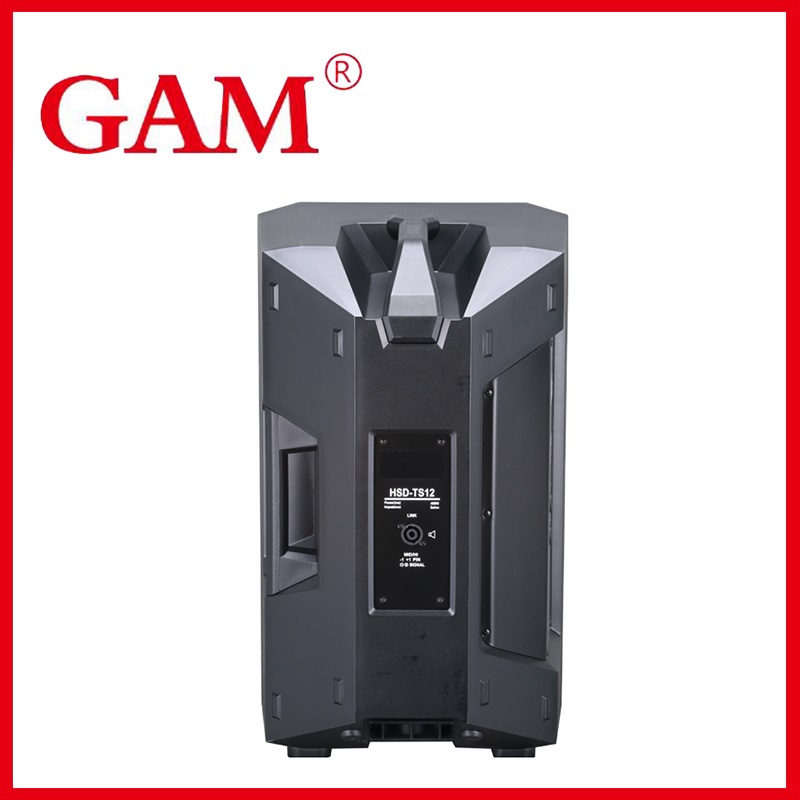

2 x Neutrik   NL4

Cabinet material

ABS

Package

412 x673x398mm

462 x780x452mm

N.W

15.6kg

22kg

G.W

17.6kg

24.5kg
