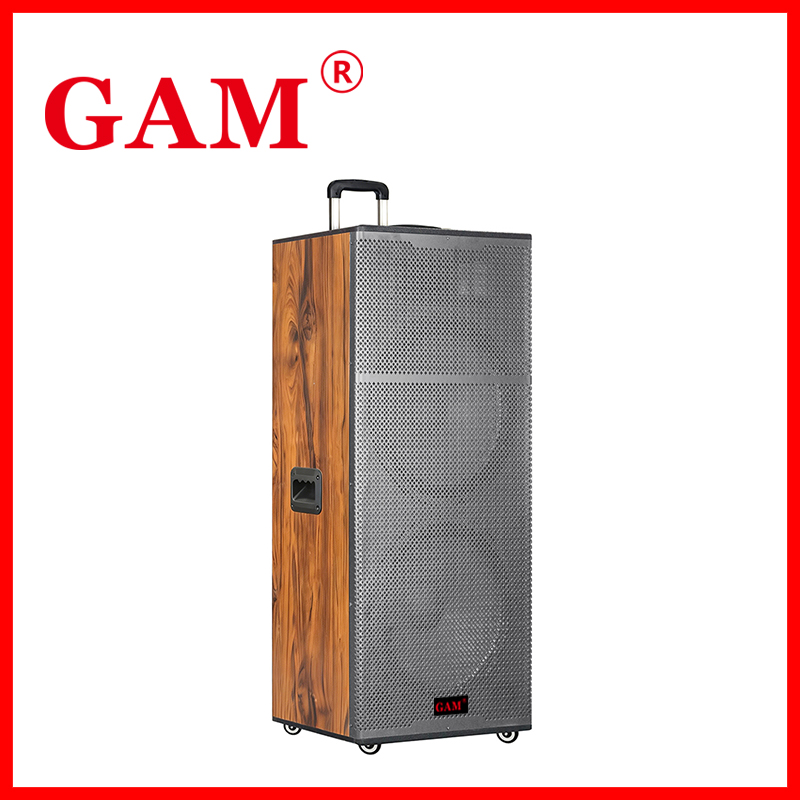

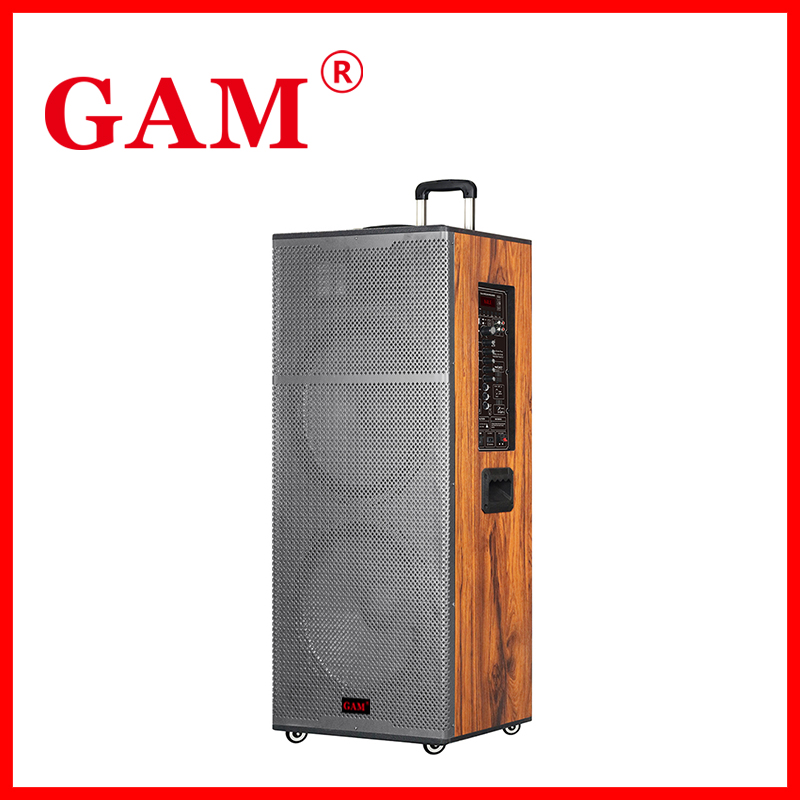

HSD-1516Z
The HSD-1516Z is an optimized version of the HSD-1599Z, customized to meet specific customer requirements for sound performance. It utilizes the TPA3221 digital IC and Shanjing DSP solution, featuring a double-sided PCB design. and with 5V mobile phone charge socket.
Wooden Cabinet Material: Acoustically optimized MDF cabinet , Premium textured finish.The wooden cabinet material provides a natural and warm acoustic resonance, enhancing the overall sound quality and aesthetic appeal.

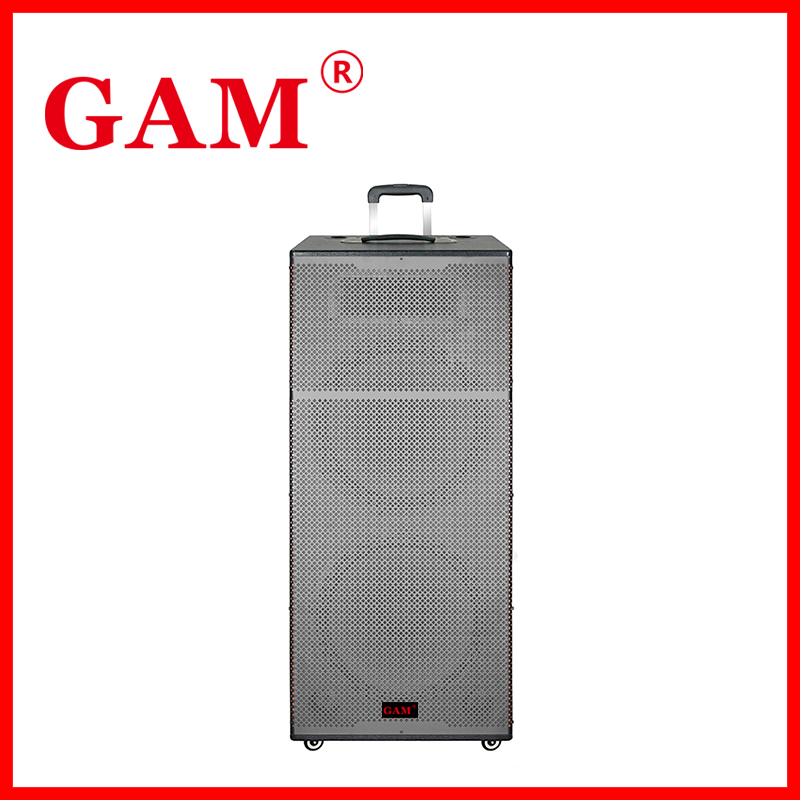

15 Inch Woofer Size: With dual 15-inch woofer, the speaker delivers powerful and clear sound, ideal for both indoor and outdoor settings.
200W Output Power: A 200W output power provides sufficient volume and clarity, making it suitable for small to medium-sized events and gatherings.
12000mAh Battery Capacity: The 12000mAh battery offers up to 10 hours of continuous playback, ensuring the speaker can be used for extended periods without recharging.
Bluetooth V5.3 Standard: With Bluetooth v5.3, this speaker ensures a stable and high-quality wireless connection, providing a seamless audio experience with minimal latency.
Wired And Wireless Dual Mode: The dual mode connectivity allows for both wired and wireless use, offering flexibility and convenience in various settings and setups.
Full-Range Audio Crossover: The full-range audio crossover ensures balanced and clear sound across all frequencies, delivering a rich and detailed audio performance.

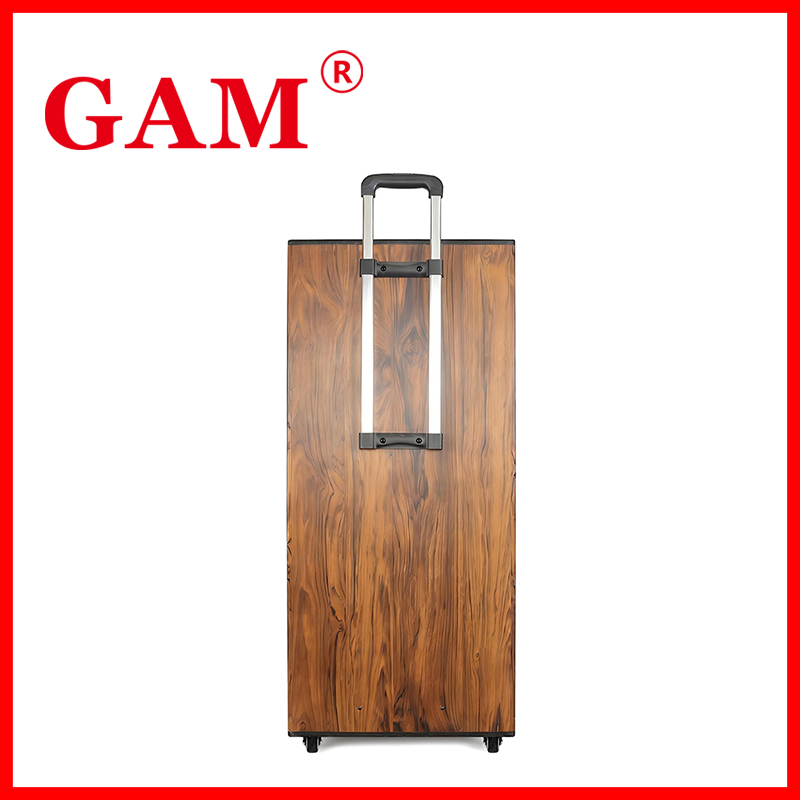

Trolley & Wheels: Reinforced aluminum telescoping handle pairing with heavy-duty, smooth-rolling wheels for effortless transport across any terrain.
GAM’S speakers give you the best sound quality anytime, anywhere.
-Rechargeable portable type, it can be used in any place at any time. ACTIVE Speaker series is a high-tech entertainment voice sound speaker.
-Provide best sound quality when it matches to corresponding sound equipment.
-Clear high tone sound, heavy mellow middle tone sound, deep elastic low tone sound.
-Great balance, used for various types of places.
SPECIFICATION
Model | HSD-1213Z | HSD-1516Z |
Power(RMS) | 200W | 200W |
Impedance | 4 ohms | 4 ohms |
Frequency Response | 45Hz-20KHz | 45Hz-20KHz |
Speaker Unit | LF12inchx2+MF4inchx1+HF x1 | LF15inchx2+MF4inchx1+HF x1 |

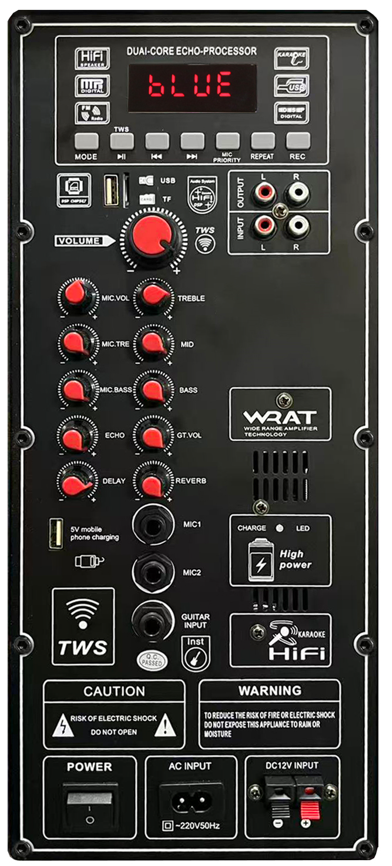

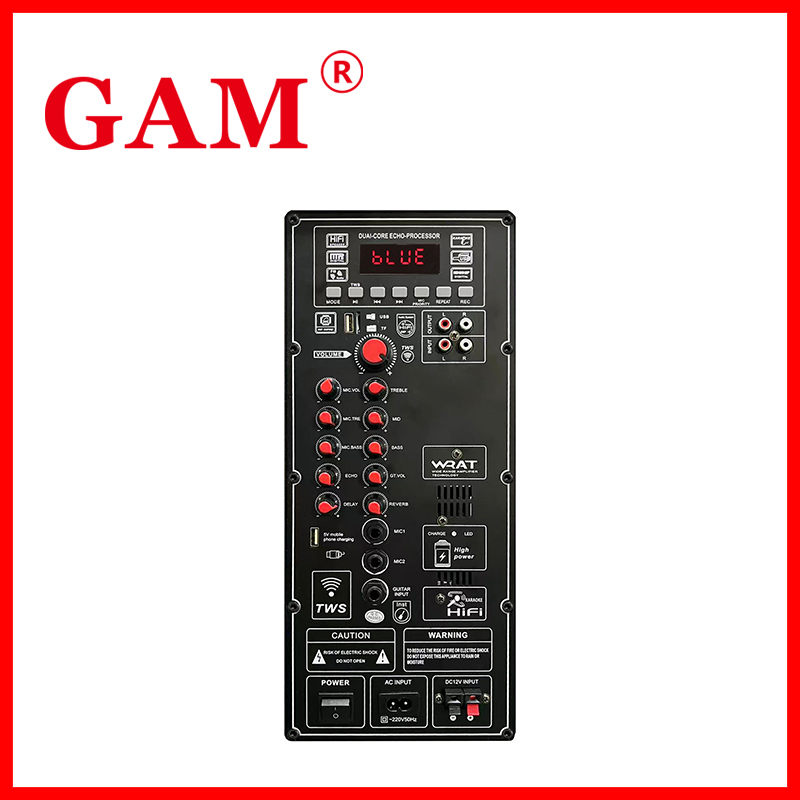

Function | 11 knobs USB/TF/Bluetooth /FM/TWS/Microphone priority MIC input x2,Guitar Input x 1, AUX input, AUX output | |
Volume Control | MIC Control- Vol,Treble,Bass,ECHO,Delay,Reverb Music Control—Vol,Treble,Mid,Bass, Guitar Vol | |
Battery | Lead acid 12V9A | Lead acid 12V12A |
Input | RCA &6.5” Standard Jack | |
Power Source | AC 110V~240V 50/60Hz,External DC 12V | |

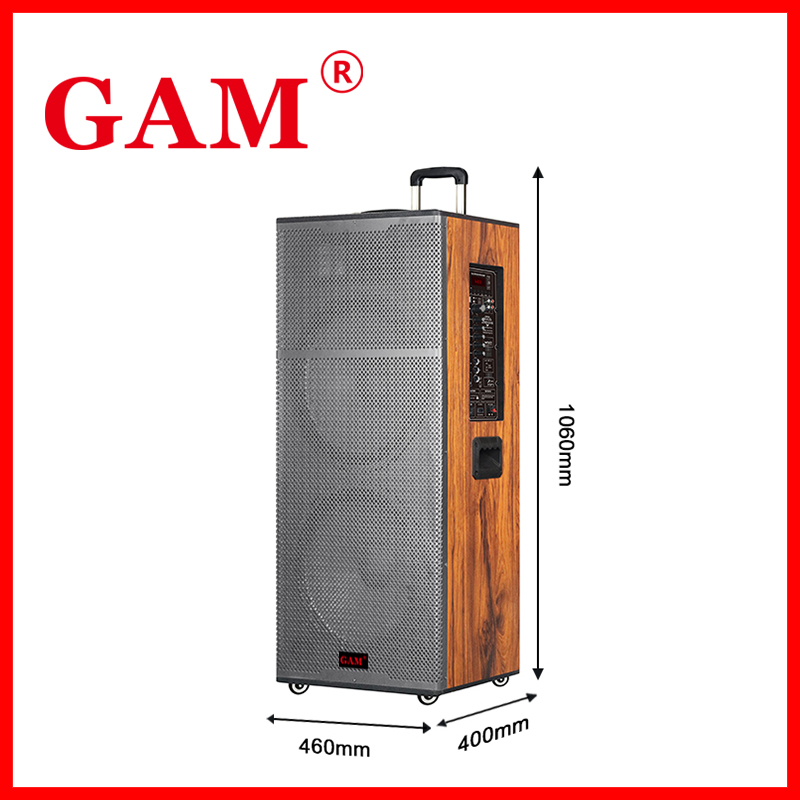

Dimensions(WHD) | 375x910x340mm | 460x1060x400mm |
Packaging Size | 450x955x410mm | 535x1105x467mm |
DECLARE:
This technical of product belong to each single customer,and here just for your reference.
