HSD-1294

12inch Wooden Trolley Speaker Built-in 12V7A lead-acid battery With 2.4G F wireless dual mic USB/TF/Bluetooth /FM/TWS/Microphone priority
Description Package Information Inquiry

The HSD-1294 features a high-power split-board design and a DSP digital amplifier module, delivering thunderous, powerful bass alongside crisp, pleasing highs. It utilizes the TPA3116 digital IC and Shanjing DSP solution, incorporates a dual-layer PCB layout, and includes a 5V charging port for mobile phones.

About this item

  • Powerful Audio   Performance: Delivers 400W peak power and 100W RMS with a 12" woofers and tweeters for deep bass, clear highs, and balanced  mids, ideal for parties, barbecues, or gatherings.

  • Karaoke      And Live Performance Ready: Includes dual mic inputs and dual guitar  input with a EQ effects, perfect for karaoke nights or live music      sessions.

  • Portable  and Durable Design:  Acoustically optimized MDF cabinet , Premium textured  finish.The wooden cabinet material provides a natural and warm acoustic      resonance, enhancing the overall sound quality and aesthetic appeal. built      for beaches, backyards, or indoor events, with battery life of 6-8 hours      at 25% volume, 5-7 hours at medium volume, or 2-3 hours at maximum volume.

  • Multiple  Connectivity Options: – Easily connect via Bluetooth 5.3 with up  to 45 ft wireless range, or use USB, TF Card, and AUX input for flexible  music playback from multiple devices.

  • Wired And  Wireless Dual Mode: The dual mode connectivity allows for   both wired and wireless use, offering flexibility and convenience in  various settings and setups.

SPECIFICATION

Model

HSD-1294

HSD-1594

Power(RMS)

100W

100W

Impedance

4   ohms

4   ohms

Frequency Response

45Hz-20KHz

45Hz-20KHz

Speaker Unit

12inchx1+   HFx1

15inchx1+HFx1

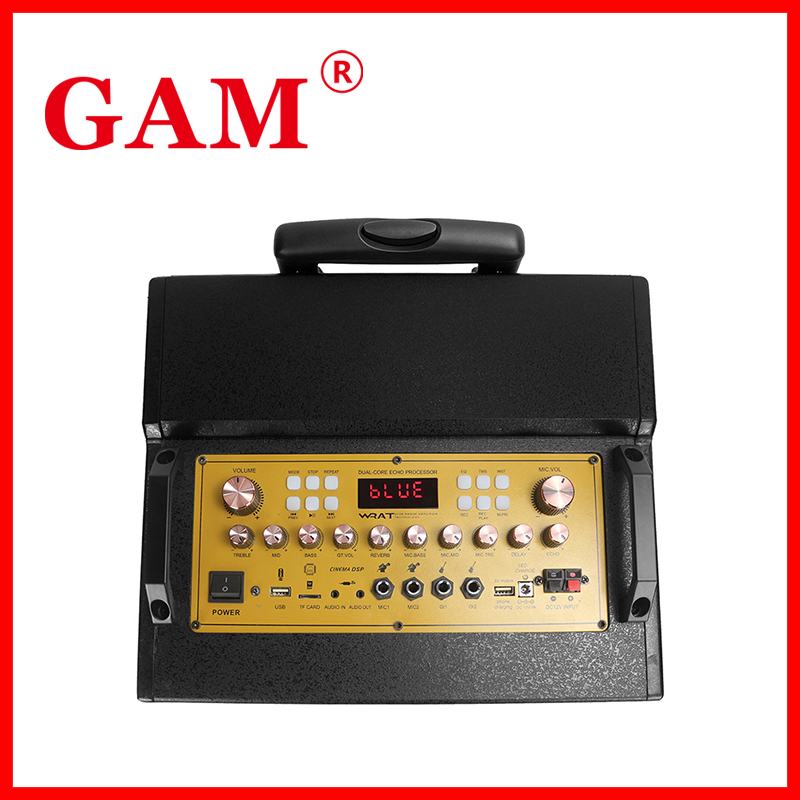

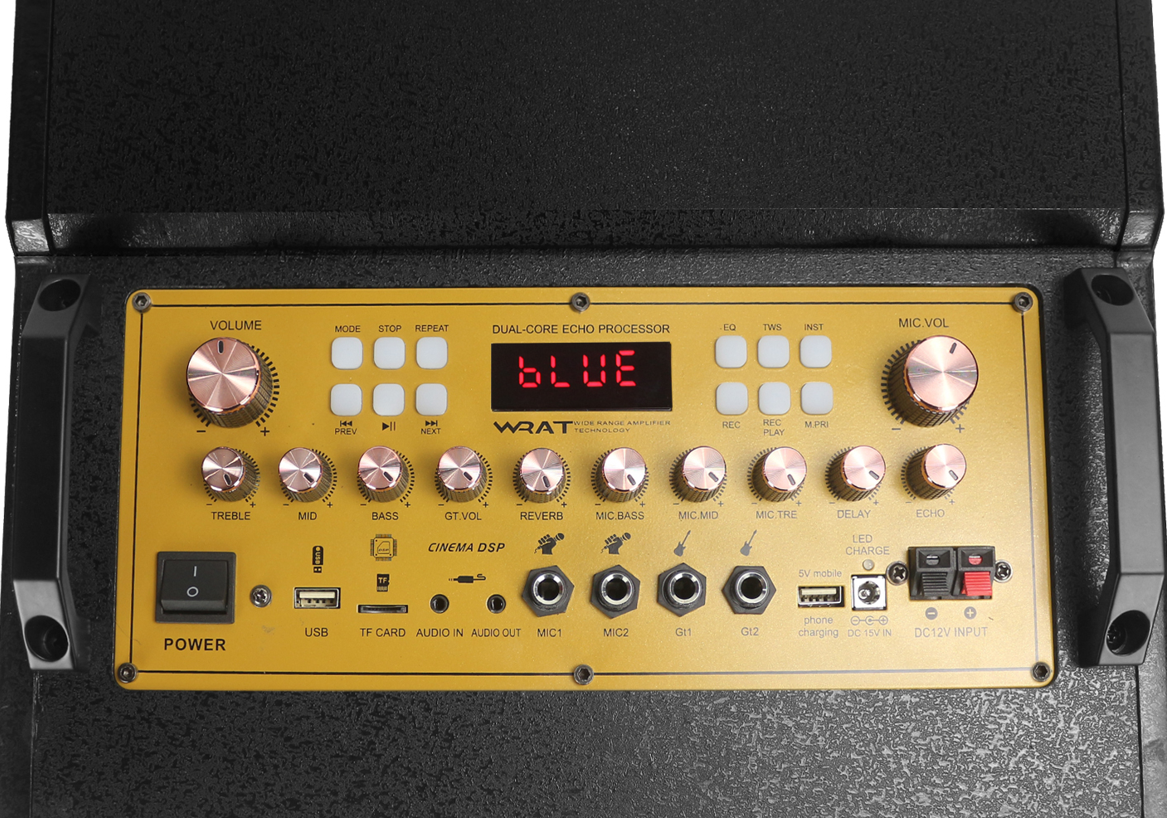

Function

12   knobs

USB/TF/Bluetooth   /FM/TWS/Microphone priority

MIC   input x2,Guitar Input x 2, Audio input,AUido output

Volume Control

MIC   Control- Vol,Treble,Mid,Bass,ECHO,Delay,Reverb

Music   Control—Vol,Treble,Mid,Bass

Guitar   Vol

Battery

Lead   acid 12V7A

Lead   acid 12V9A

Input

RCA   &6.5” Standard Jack

Power Source

AC   110V~240V 50/60Hz,External DC 12V

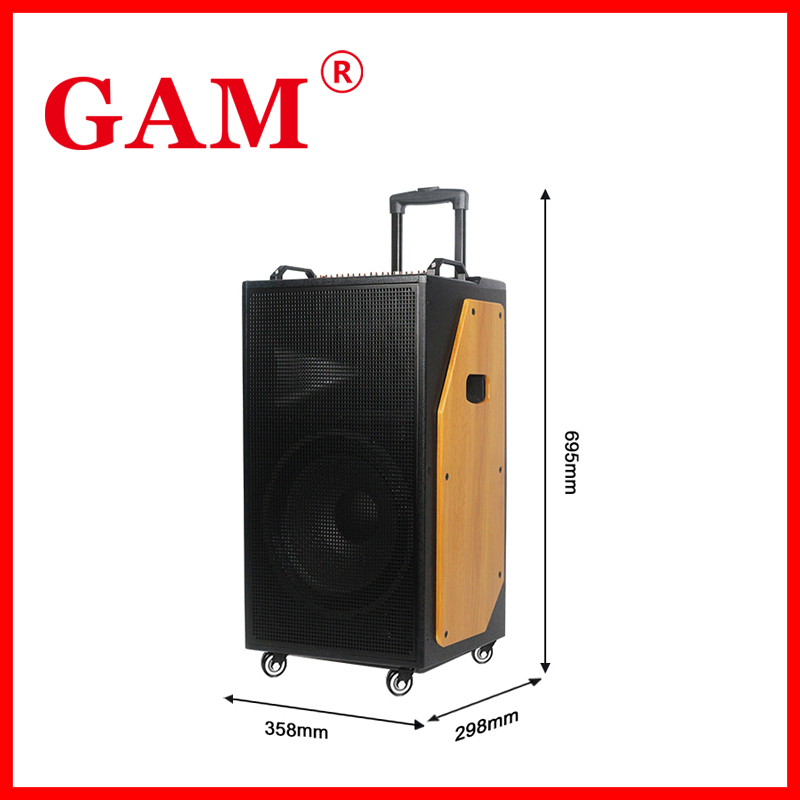

Dimensions(WHD)

358x695x298mm

425x800x298mm

Packaging Size

378x720x325mm

445x825x325mm
