HSD-1014

Dual 10 Wooden Trolley Speaker Built-in 12V9A lead-acid battery With 2.4G F wireless dual mic USB/TF/Bluetooth /FM/TWS/Microphone priority
Description Package Information Inquiry

The HSD-1014 features a high-power split-board design and a DSP digital amplifier module, delivering thunderous, powerful bass alongside crisp, pleasing highs. It utilizes the TPA3116 digital IC and Shanjing DSP solution, incorporates a dual-layer PCB layout, and includes a 5V charging port for mobile phones.

About this item

·       Wooden Cabinet Material: Acoustically optimized MDF cabinet , Premium textured finish.The wooden cabinet material provides a natural and warm acoustic resonance, enhancing the overall sound quality and aesthetic appeal.

·       Powerful Audio Performance: Delivers 400W peak power and 100W RMS with dual 10" woofers and tweeters for deep bass, clear highs, and balanced mids, ideal for parties, barbecues, or gatherings.

·       100W Output Power: A 100W output power provides sufficient volume and clarity, making it suitable for small to medium-sized events and gatherings.

·       Karaoke And Live Performance Ready: Includes dual mic inputs and dual guitar input with a EQ effects, perfect for karaoke nights or live music sessions.

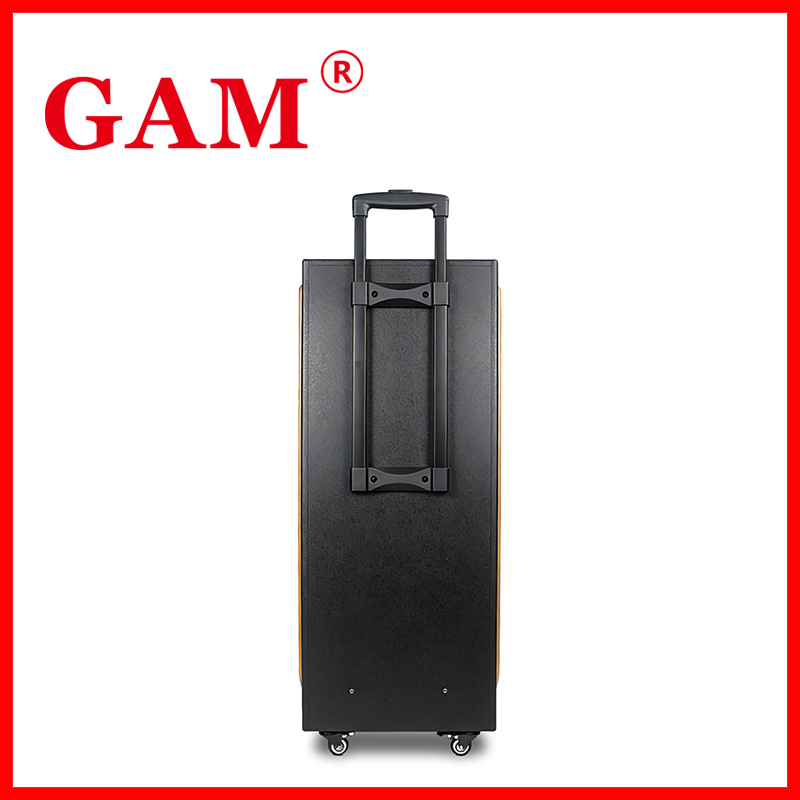

·       Trolley & Wheels: Reinforced aluminum telescoping handle pairing with heavy-duty, smooth-rolling wheels for effortless transport across any terrain.built for beaches, backyards, or indoor events, with battery life of 6-8 hours at 25% volume, 5-7 hours at medium volume, or 2-3 hours at maximum volume.

·       Multiple Connectivity Options: – Easily connect via Bluetooth 5.3 with up to 45 ft wireless range, or use USB, TF Card, and AUX input for flexible  music playback from multiple devices.

SPECIFICATION

Model

HSD-1014

HSD-1214

Power(RMS)

100W

100W

Impedance

4   ohms

4   ohms

Frequency Response

45Hz-20KHz

45Hz-20KHz

Speaker Unit

10inchx2+  HFx1

12inchx2  +HFx1

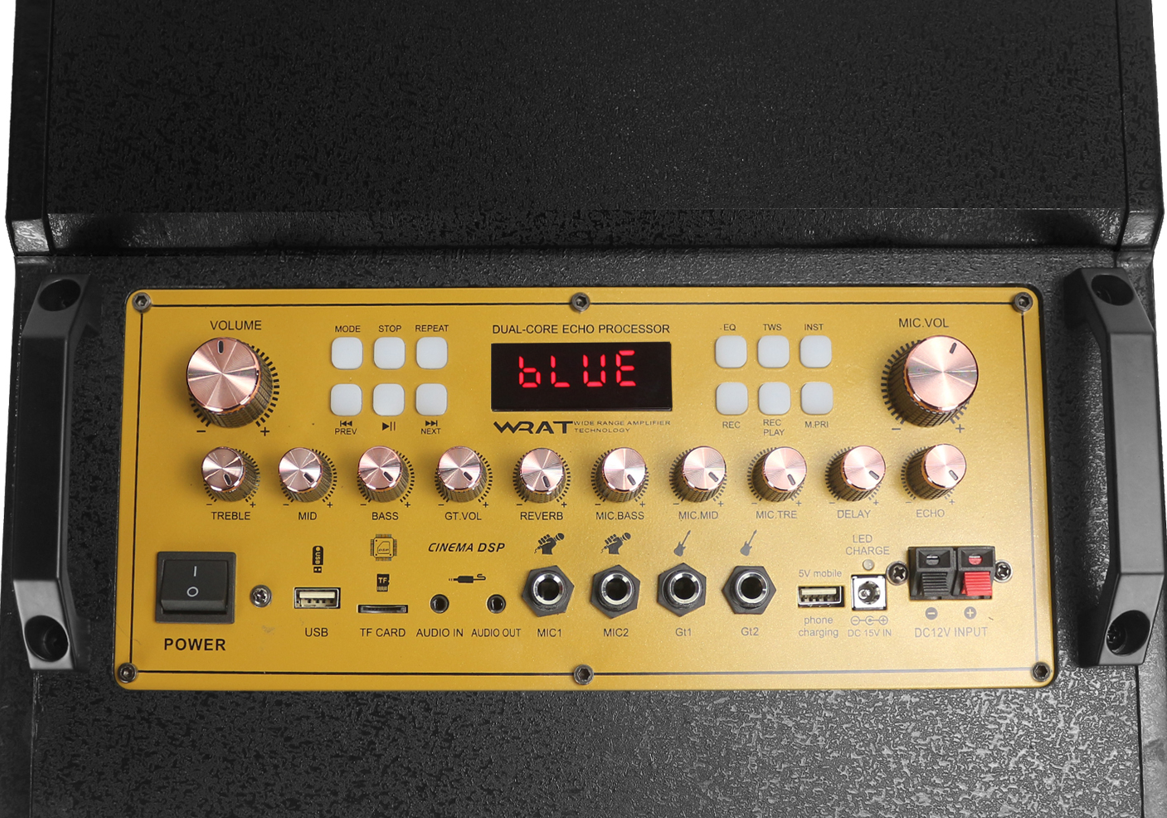

Function

12   knobs

USB/TF/Bluetooth   /FM/TWS/Microphone priority

MIC   input x2,Guitar Input x 1, AUX input, AUX output

Volume Control

MIC   Control- Vol,Treble,Mid,Bass,ECHO,Delay,Reverb

Music   Control—Vol,Treble,Mid,Bass

Guitar   Vol

Battery

Lead   acid 12V9A

Lead   acid 12V12A

Input

RCA   &6.5” Standard Jack

Power Source

AC   110V~240V 50/60Hz,External DC 12V

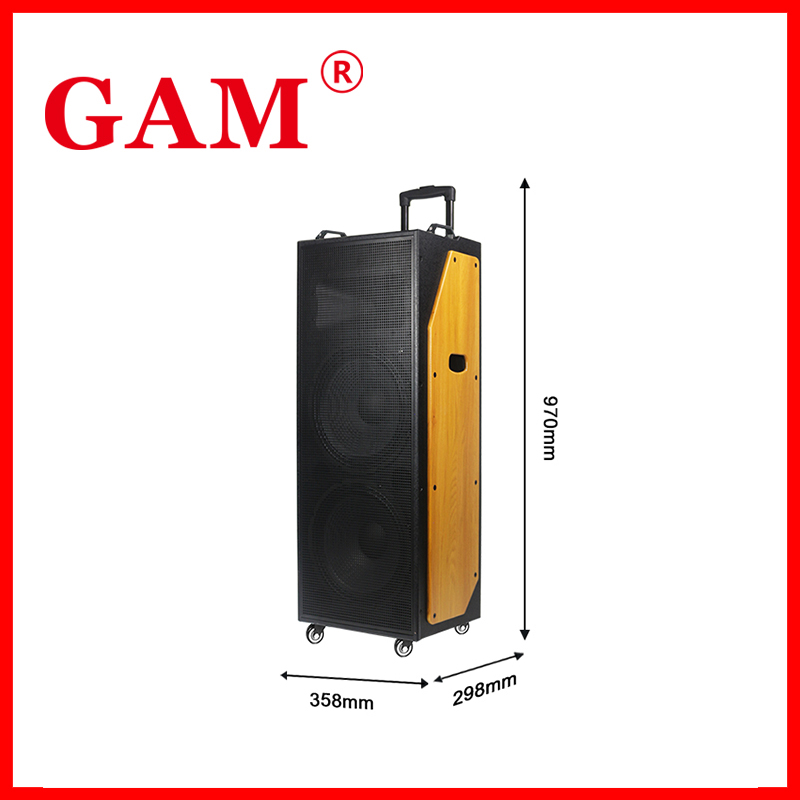

Dimensions(WHD)

340x880x298mm

358x970x298mm

Packaging Size

365x910x328mm

283x995x328mm
